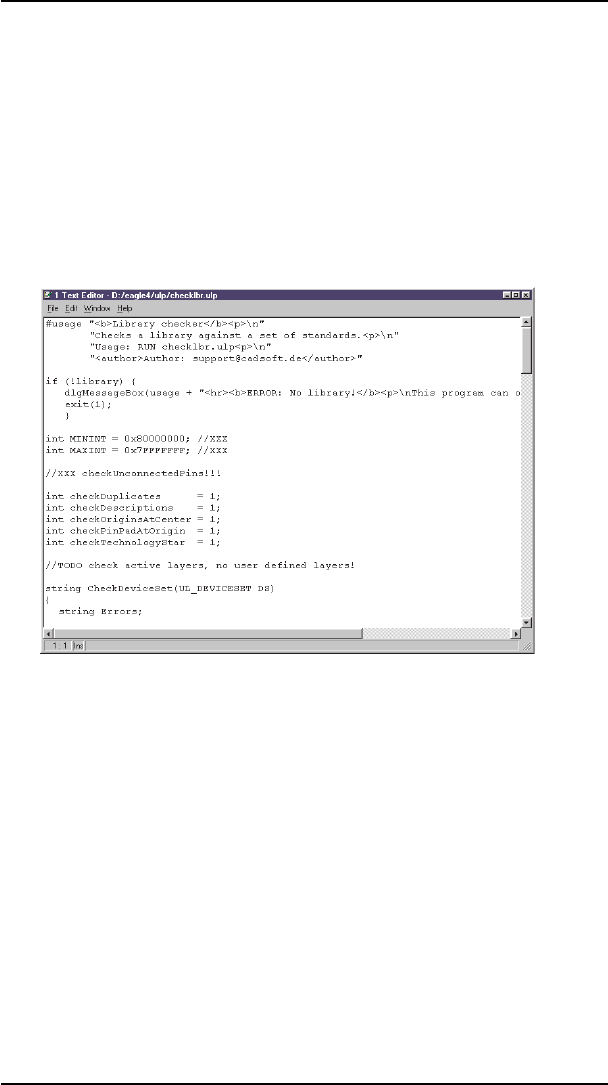

4.6 The TextEditorWindow
EAGLEcontainsasimpletexteditor.
You can use it to edit script files, User Language programs or any other
textfile.
When in the text editor, the right mouse button calls up a context menu.
The menus bring you to a variety of functions such as commands for
printing, copying and cutting, searching, replacing (also regular expres
-
sions),changingfontandsize,andsoon.
TheTextEditor
61
