theprefixforthecomponentname,ifaprefixisused,
•
ifthevalueofthecomponentcanbechangedorifthevalue
shouldbefixedtothedevicename,
•
whichpinsrelatetothepadsofthepackage(CONNECTcom
-
mand)
•
whetheradescriptionforthiscomponentshouldbestoredinthe
library.
The following diagram shows the fully defined 7400 device with four
NAND gates and a supply gate in various package and technology
versions.

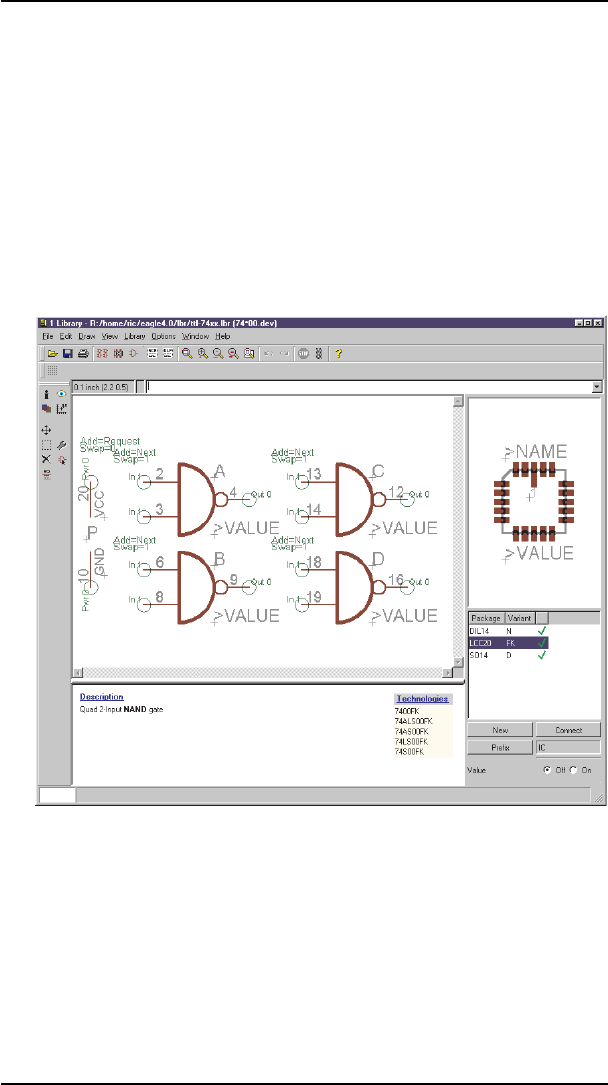

DeviceEditorwindow
CreateActual ComponentsfromSymbolsandPackages
Switch to the device editing mode by clicking the Device icon of the ac
-
tion toolbar. Type in the device name and confirm the question Create
newdevice'devicename'? with Ye s.
Usethefollowingcommandstocreateadevice.
