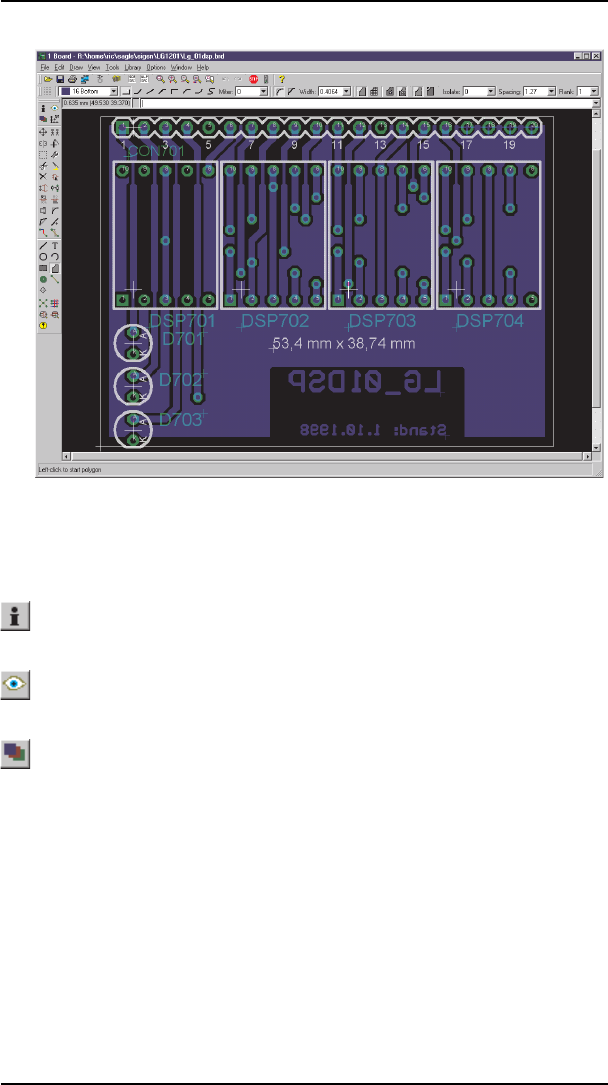

LayoutEditorwindow
TheCommandsontheLayoutCommandToolbar
INFO
Providesinformationabouttheobjecttobeselected.
SHOW
Highlightstheobjecttobeselected.
DISPLAY
Select and deselect the layers to be displayed. Components on the top
side of the board can only be selected if the layer 23, tOrigins, is dis
-
played. The same applies to components on the bottom side of the
board and layer 24, bOrigins. Only those signal layers that are defined
intheLayersetupareshown.
See Appendix forthemeaningofthelayers.
Additional information about further options of the DISPLAY com
-
mandcanbefoundintheprogram'shelp.
46
EAGLEManual
