The automatic backup function also permits the backup to be
scheduled. The time-interval can be between 1 and 60 minutes (default:
5 minutes). The backup files have the endings b##, s## and l##
respectively.
All these backup files can be further processed in EAGLE if they are
renamedandgiventheusualfileendings(brd, sch, lbr).

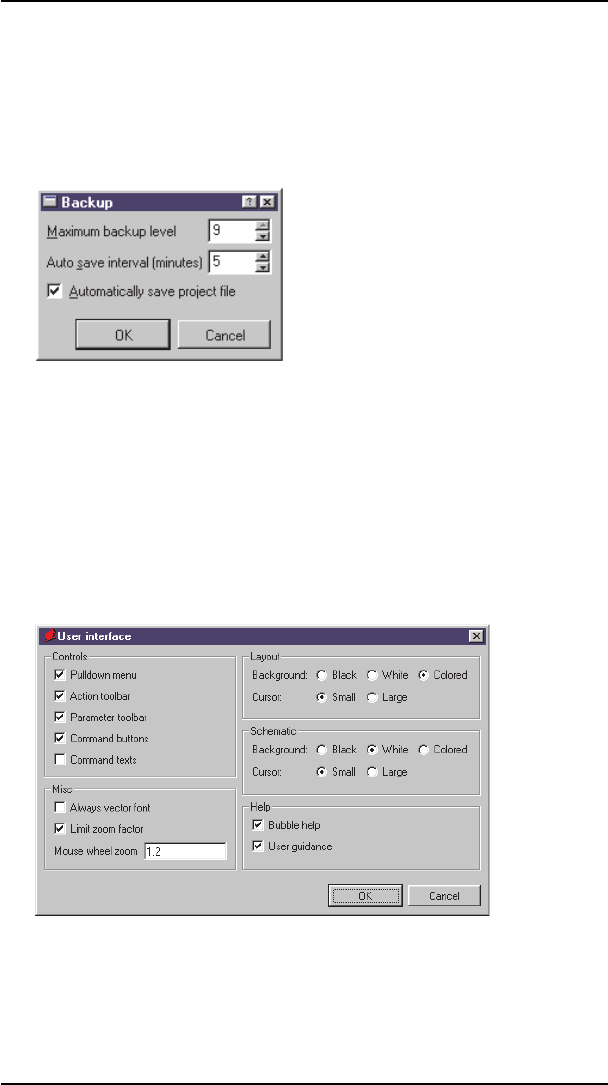

Backupdialog
If the option to Automatically save project file is chosen, your project is
automatically saved when you close the current project or leave the
program.
UserInterface
The User Interface dialog allows the appearance of the editor windows
for the layout, schematic diagram and library to be adjusted to your pre
-
ferences.
YoucanalsoaccessthismenufromtheEditorwindows.
SettingsfortheUserInterface
In the Controls box you specify which elements are to be displayed in
the editor window. If you deactivate all the Controls, only the command
line will remain for entry. This maximizes the free area available for the
drawing.
32
EAGLEManual
