the Linux version. The Projects directory is the default directory for the
texteditor.
The Projects directory contains subdirectories, each of which represents
a particular project. Each of the project directories contains an EAGLE
project file (eagle.epf). A project directory and its subdirectories usually
contain all the files that are associated with one particular project, such
as the schematic diagram and the layout, text files, manufacturing data,
documentationfilesandsoon.

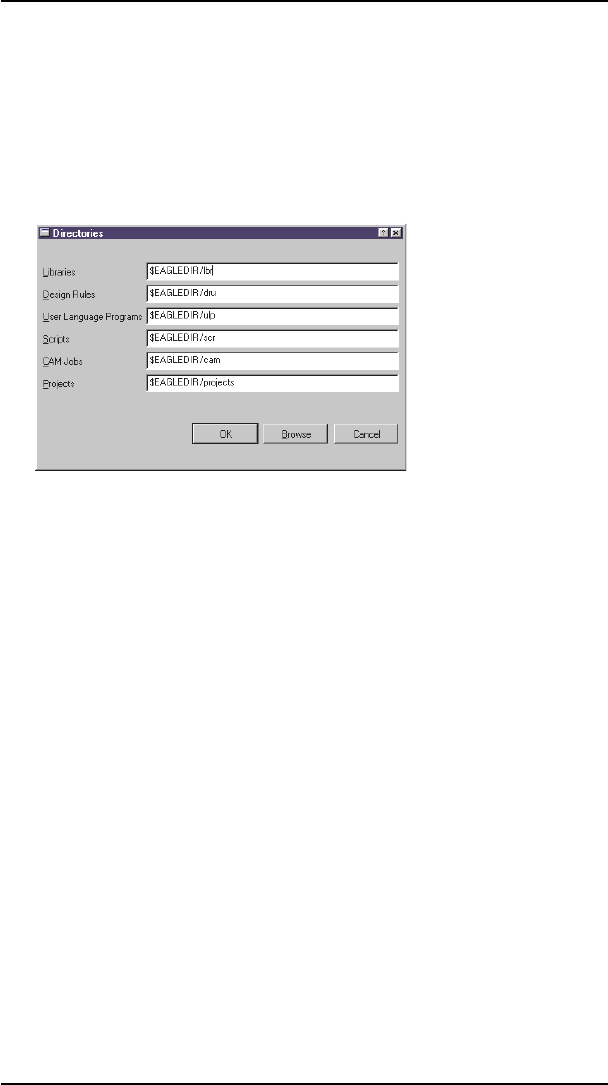

ThedirectoriesdialogintheOptionsmenu
Type the path directly into the corresponding box, or select the desired
directorybyclickingonthe Browse button.
The default settings can be seen in the diagram above. $EAGLEDIR
standsfortheinstallation’sEAGLEdirectory.
You may also use $HOME for your home directory under Linux. Under
Windows it is possible to define this environment variable wit the SET
command.
If a HOME variable has not been set within the environment, then un
-
derWindowsEAGLEwillsuggestthedirectory MyDocuments.
ThisdirectoryisdefinedintheWindowsregistryin:
HKEY_CURRENT_USER\Software\Microsoft\Windows\CurrentVersi
-
on\Explorer\ShellFolders\Personal
Itisofcoursealsopossibletospecifypathswithanabsoluteformat.
Pleasenote:
TheHOMEvariablemustnotpointtotherootdirectoryofadrive.
Backup
When files are saved, EAGLE creates backup copies of the previous
files. The maximum backup level field allows you to enter the maximum
number of backup copies (default: 9). Backup files have different file ex
-
tensions, enumerated sequentially. Schematic files receive the ending
s#x, board files b#x, and library files l#x. x can run from 1 to 9. The file
with x =1isthenewestone.
