InaLibrary

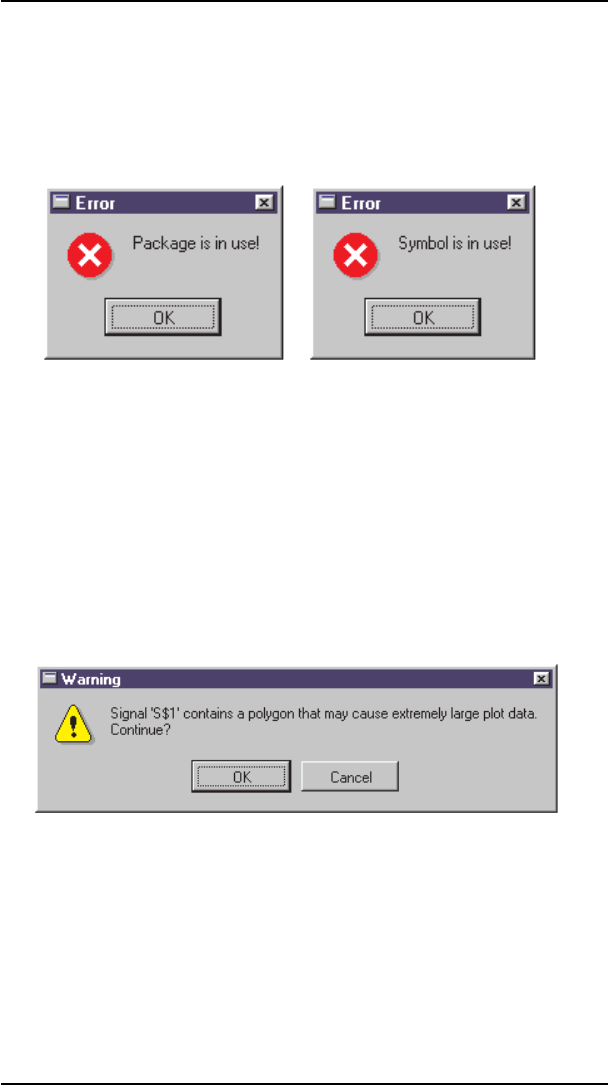

Package/Symbolisinuse
If a package or symbol is used in a device, no pads or pins may be dele
-
ted or added. Therfore the following messages appear after the PAD or
PINcommandhavebeenselected:
ItisallowedtoCHANGEpinsorpads.
To change the number of pins/pads you have to delete the correspond
-
ingdevice(s)first(REMOVEcommand).
This message appears also if you try to remove the whole package/sym
-
bol from the library with the REMOVE command. You have to delete
thewholedeviceorthepackagevariantorsymbolinthedevicebefore.
IntheCAMProcessor
Signalcontainsapolygonthatmaycauseextremelylarge
plotdata
This message always appears if you have drawn a signal polygon in the
layout whose line thickness is less than the resolution of the selected
outputdriver(Device).
In order to avoid unnecessary large plot files you should assign a higher
valuetothepolygon’slinewidth(CHANGEwidth).
244
