A simple parts list can also be created by means of the EXPORT com
-
mand(Partlist option).
DrillPlan
A drill plan can be printed which enables you to check the drill holes
and their diameters. It shows an individual symbol for each diameter.
EAGLE uses 19 different symbols: 18 of them are assigned a certain di
-
ameter; one (Ø) appears if no symbol has been defined for the diameter
ofthishole.
The diameter symbols appear in layer 44, Drills, at the positions where
pads or vias are placed, and in layer 45, Holes, at the positions where
holes are placed. These layers must therefore be active when the drill
planisgenerated.
The relation between diameters and symbols is defined via the Op
-
tions/Set/Drill dialogoftheLayoutEditor
.

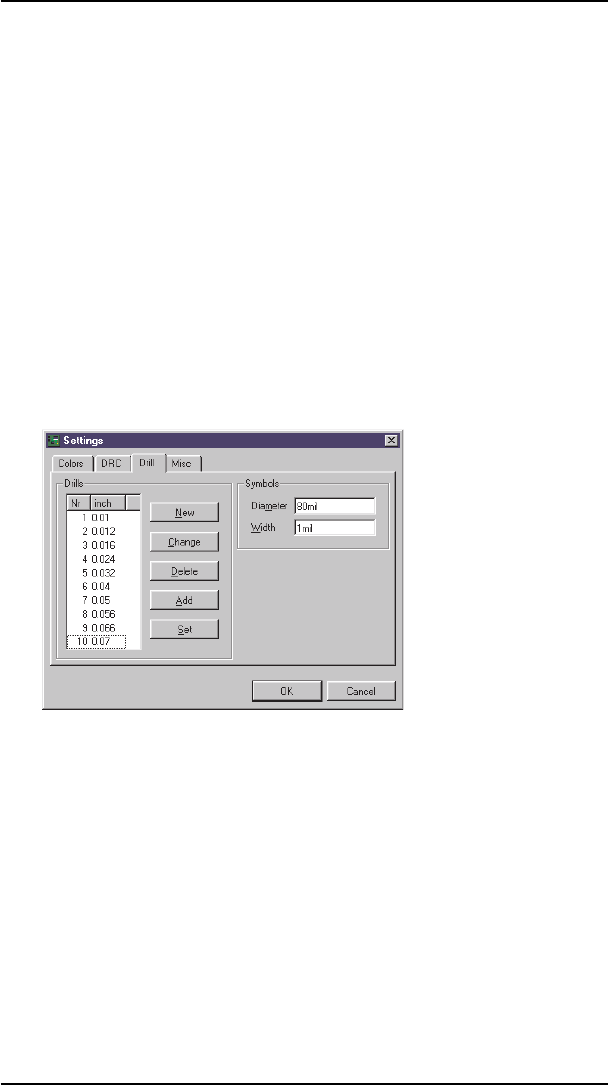

Configurationofthedrillsymbols
The buttons New, Change, Delete and Add can be used to create a new
table, to modify certain entries, delete them or to add new ones. The Set
button extracts all the hole diameters from the layout and automatically
assignsthemadrillsymbolnumber.
The values of Diameter and Width determine the diameter and line
thicknessofthedrillsymbolonthescreenandinaprintout.
The image shows that drill symbol 1 is assigned to a drill diameter of
0.01 inch. In the following image you can see the related symbol drawn
in layer 44, Drills, or 45, Holes, looks like. The symbol number 1 looks
likeapluscharacter(+).
231
PreparingtheManufacturingData
