The EPS driver generates Encapsulated PostScript files, and these can be
furtherprocessedwith DTPprograms.
9.11 Documentation
Many documentation items can be generated with the aid of User Lan
-
guage programs. You can find a description of a ULP in the User Lan
-
guage programs branch of the tree view in the Control Panel, or at the
start of a ULP file itself. In that case, examine the ULP with a text edi
-
tor.
Note also the wide range of programs that are made available on our
webserver.
Parts List
The parts list can be created by a number of User Language programs.
One very convenient program for the generation of the parts list is
bom.ulp. Start it from the schematic diagram editor, using the RUN
command. The Bill Of Material window with the parts summary opens
first.

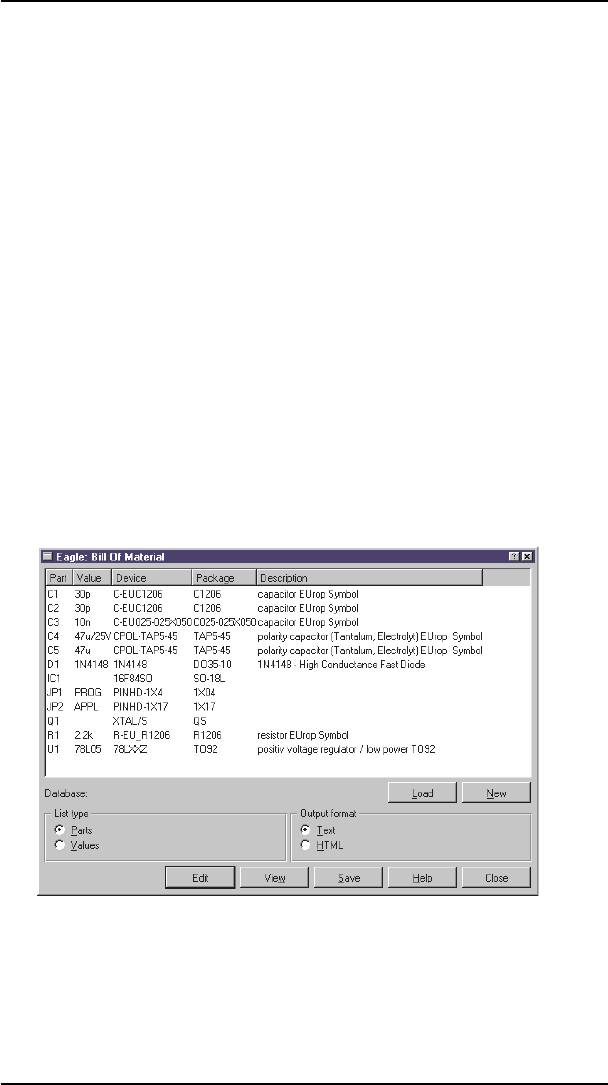

bom.ulp:Dialogwindow
It is possible to import additional information from a database into the
parts list (Load), or to create a new database with its own properties
suchasmanufacturer,storesnumber,materialnumberorprice(New).
You can obtain further details about the current version of the ULP by
clickingthehelpbutton.
230
EAGLEManual
