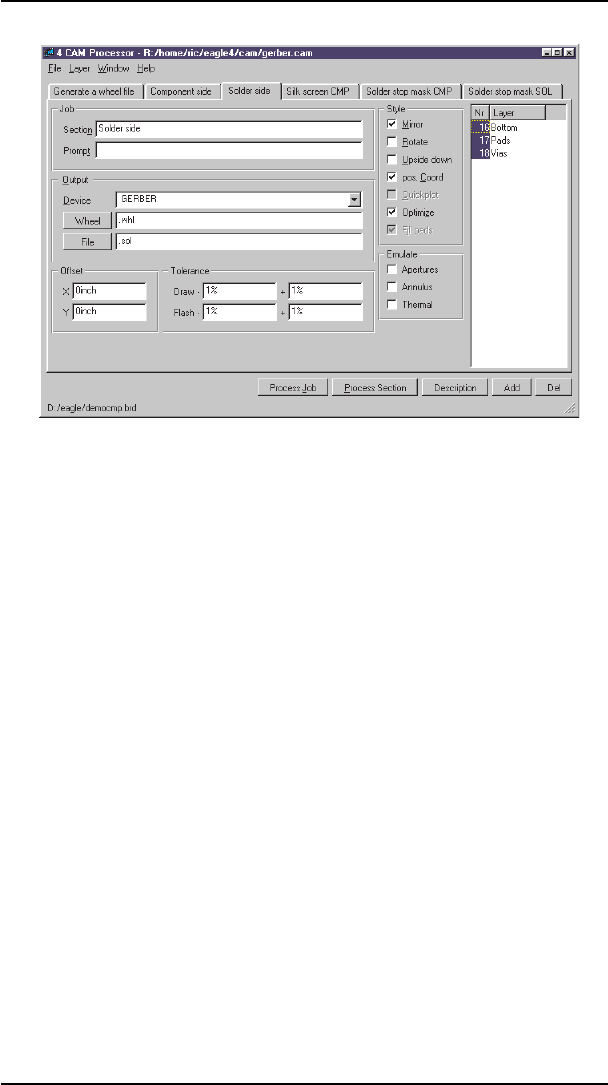

CAMProcessor: Solderside sectionofthe gerber.cam job.
The diagram shows the ending .whl in the Wheel line for the aperture ta
-
ble. This means that the file democmp.whl is looked for. The output
(File) receives the name democmp.sol. The flag options Optimize and
Pos.coords. areactive.
A tolerance of 6 1% is permitted for the aperture selection. This is nec
-
essary in order to compensate for small rounding errors (of around
0.00005 inch) that can arise during the conversion from mm to inch val
-
uesastheaperturetableisgenerated.
Thestatuslinebelowshowswhichlayoutisloaded.
9.7 Automatingthe OutputwithCAM
ProcessorJobs
Defininga Job
A job consists of one or more sections. A section is a group of settings,
as described above in the Set Output Parameters chapter, which defines
the output of one file. In this way you can use a job to generate all the
filesthatarenecessaryforaproject.
Youdefineajobasfollows:
•
StarttheCAMProcessor.Nojobisloadedatfirst,unlessthereis
afilecalled eagle.cam inthe cam directory.
•
Clickonthe Add buttonandenteranameforthe section whichis
tobedefined.
If,forexample,youassignthesectionname Wheel:GenerateAper
-
