DrillData
The CAM Processor offers the usual output devices for drill data, like
Excellon,SM1000,andSM3000.
Jobexcellon.cam
The easiest way to generate drill data is to use the pre-defined CAM job
excellon.cam. Used with the CAM Processor a file that contains drill
dataandtherespectivedrilltablewillbegeneratedautomatically.
Proceedasfollows:
•
StarttheCAMProcessor(forexample File/CAMProcessor).
•
LoadtheboardintotheCAMProcessor(File/Open/Board)ifit
wasnotloadedautomaticallyduringthestartsequence.
•
Loadthepredefinedjob excellon.cam,e.g.with File/Open/Job.
•
Executethejob(ProcessJob).
•
Sendthefiles name.drl and name.drd (forlayoutswithblindand
buriedvias name.drd.xxxx)andperhapstheinfofile name.dri as
welltoyourboardhouse.

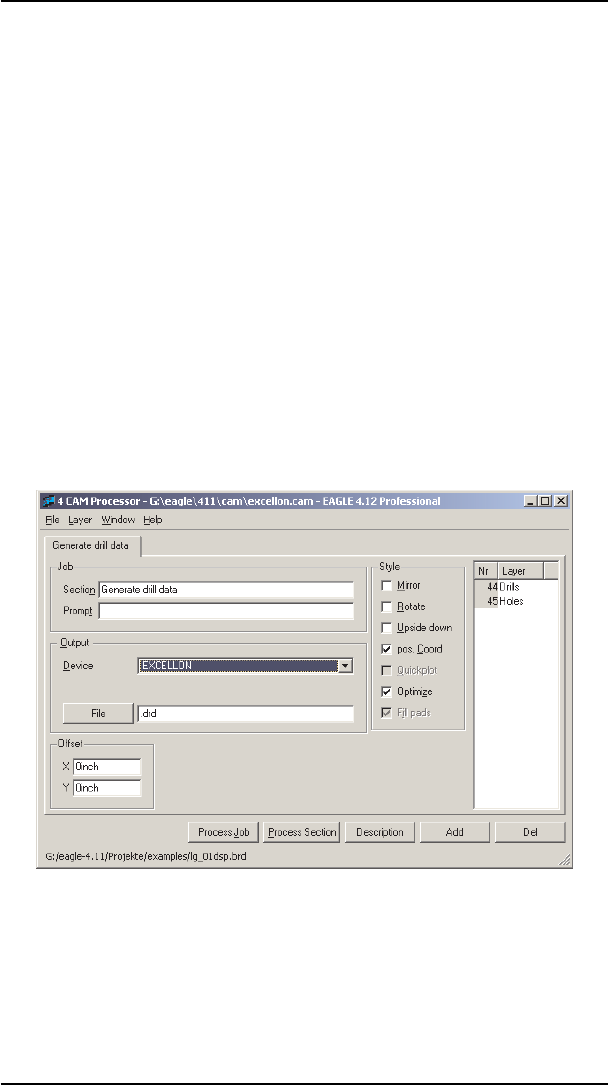

CAMProcessor:Generatedrilldatawiththeexcellon.camjob
The EXCELLON device combines drill table and drill coordinates in
onecommonfile.Thedefaultunitforthedrilltableisinch.
If the drill table would be preferred in millimeters the device definition
can be changed in the file eagle.def. More details concerning this can be
foundinthesection Unitsfor apertureanddrilltables.
217
PreparingtheManufacturingData
