Gerber.cam JobforTwo-LayerBoards
The gerber.cam job uses the GERBERAUTO and GERBER drivers.
These generate files in the RS-274D format. It is set up for two-layer
boards which are to receive a solder stop mask on the component and
onthesolderingside,andistoreceiveasilkscreenprint.
Load the job by double-clicking on the gerber.cam entry in the tree view
oftheControlPanel.
In the first step an aperture table name.whl is automatically generated.
Two messagesappear,whichyouconfirmwithOK.

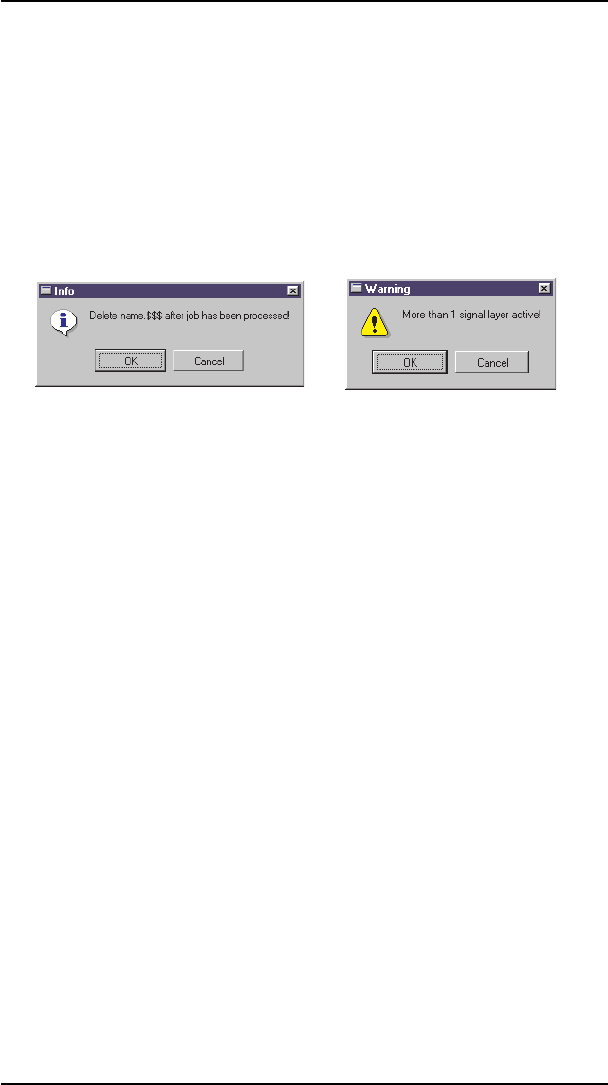

Gerberjobmessages
The first message is generated by the entry in the Prompt field, and re
-
minds you to delete the temporary files created when generating the ap
-
erturetablewhenthejobisdone.
The second message advises you that more than one signal layer is active
at the same time. Normally only one signal layer is active while output is
generated. However, when generating the wheel, all the layers need to
be active at the same time in order to form a common aperture table for
allGerberoutput.
Dataforthefollowinglayersissubsequentlyoutput:
name.cmp
componentside
name.sol
solderside
name.plc
Silkscreen
name.stc
Solderstopmask,componentside
name.sts
Solderstopmask,solderside
If other layers are also to be generated, e.g. silkscreen for the bottom
side, or a solder cream mask, the Gerber job can be extended as
required.
Extendingthejobisdiscussedlaterinthissection.
Jobrs274x.cam
This job can be used as an alternative to gerber.cam if the circuit board
manufacturer uses the Extended Gerber format. In contrast to ger
-
ber.cam, a separate aperture table is not created. The various Gerber files
are simply output one after another. Each file contains aperture defini
-
tionandGerberdata.
