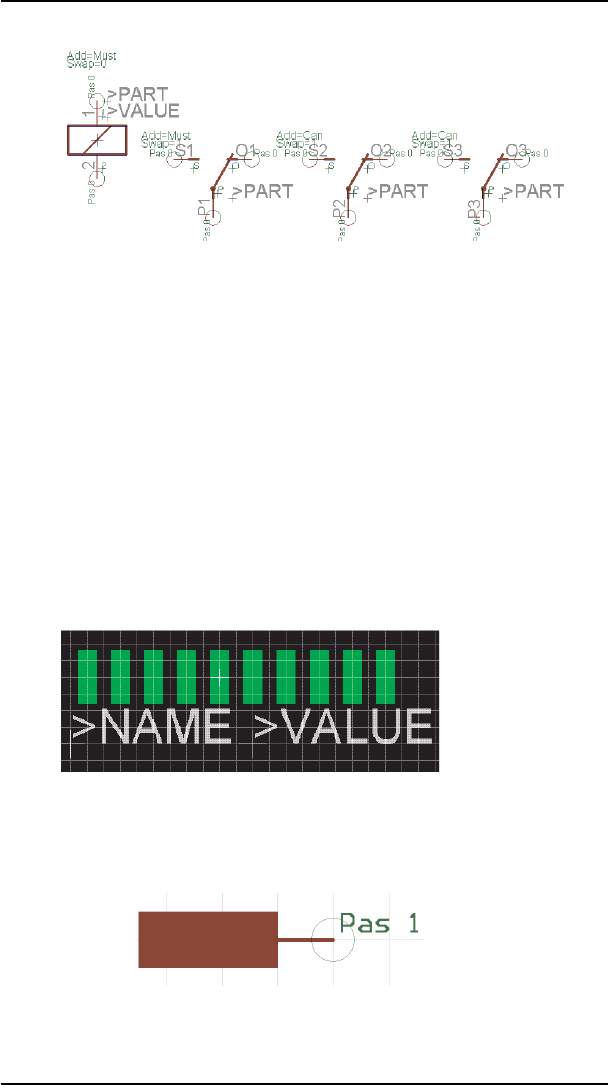

Relaywithonecoilandthreecontacts
If the relay is fetched into the schematic with the ADD command, the
coil and the first contact are placed. If another contact is to be placed,
this can be done with the INVOKE command. The coil cannot be de
-
leted on its own. It disappears when all the contacts have been deleted
(beginningwiththosedefinedwithaddlevel Can).
Connector:SomeConnectionSurfacescanbe
Omitted
A pcb connector is to be designed in which normally all the contact ar
-
eas are present. In some cases it may be desirable for some of the con-
tactareastobeomitted.
Define a package with 10 SMDs as contact areas, giving the SMDs the
names1to10.
Packageofacircuitboardconnector
Now define a symbol representing one contact area. Set visible to Pad,
so that the names 1 to 10, defined in the package, appear in the
schematic.
Connectorsymbolfortheschematicdiagram
196
EAGLEManual
