SupplysymbolforGND
As has been explained above, the device receives the name of the pin
thatisusedinthesymbol.Thecorrespondingdeviceisdefinedwith
addlevel Next. If you set value to off you can be sure that the labeling is
not accidentally changed. On the other hand, you have more flexibility
with value set to on. You can alter the label if, for instance, you have a
second ground potential. You must, however, then create explicit nets
forthesecondground.

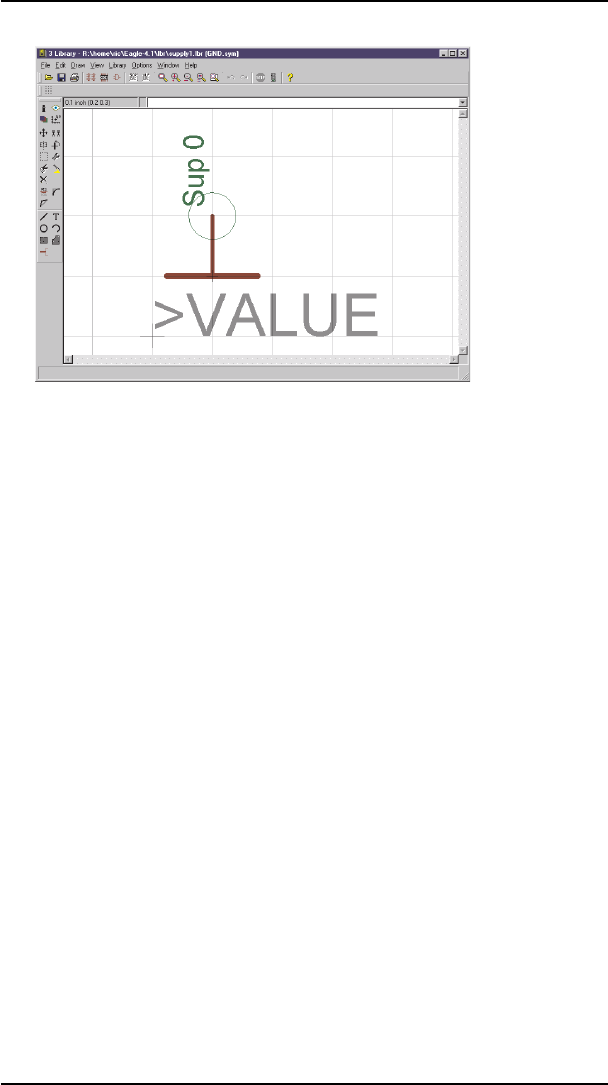

QuickguidetodefineaSupplySymbol:
•
Createanewsymbolinthelibrary
•
Placethepin,withdirectionSupply
•
Pinnamecorrespondstothesignalname
•
Valueplaceholder
•
Createanewdevice
•
Devicenameissignalname
•
Packageassignmentnotnecessary
