One pin has to be connected to exactly one pad! It is not possible to connect
several pins with a common pad! A device may contain more pads than
pins,butnottheotherwayaround!
Pins with direction NC (not connected) must be connected to a pad, as
well!
DefiningTechnologies
As noted above, the 541032 is to be used in two different technologies −
AS and ALS −. By including a * as a placeholder in the device name we
have already taken the first step towards this. In the schematic diagram
the code for the chosen technology will appear instead of the *. The data
sheetshowsthatbothtechnologiesareavailableinbothpackages.
Select the J package from the list on the right of the Device Editor win
-
dow. Then click on Technologies in the description box. The technolo
-
gies window opens. Define the technology in the New line, and confirm
the entry with OK. When the entry has been completed, the AS and
ALS entriesareactivatedwithatick.

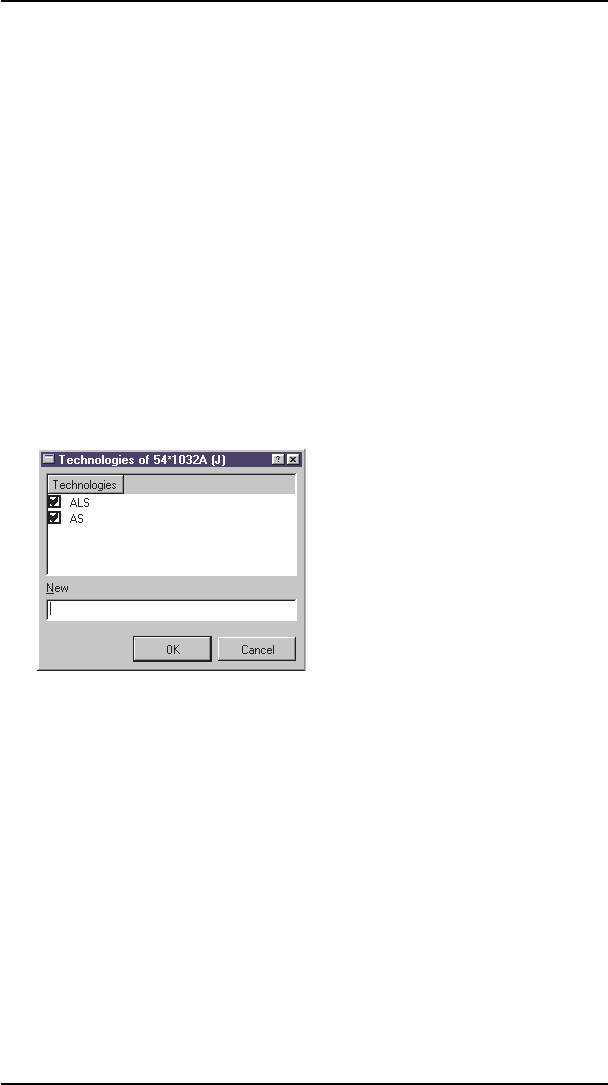

TechnologiesforpackageversionJ
Closethewindowbyclickingon OK again.
Select the FK version from the package list. Click on Technologies in the
description box again. You will now see that AS and ALS are available as
selections in the technologies window. Activate both of these by click
-
ing in the small box to the left, so that a tick is displayed. Finish the
definitionbyclickingon OK.
The technologies available for the selected package version are now
listedinthedescriptionareaoftheDeviceEditor.
SpecifyingthePrefix
The prefix of the device name is defined simply by clicking on the Prefix
button. IC istobeenteredinthisexample.
188
EAGLEManual
