Thepinassignmentforthepackages
Select the J version from the package list and click on the CONNECT
button.Theconnectwindowopens.

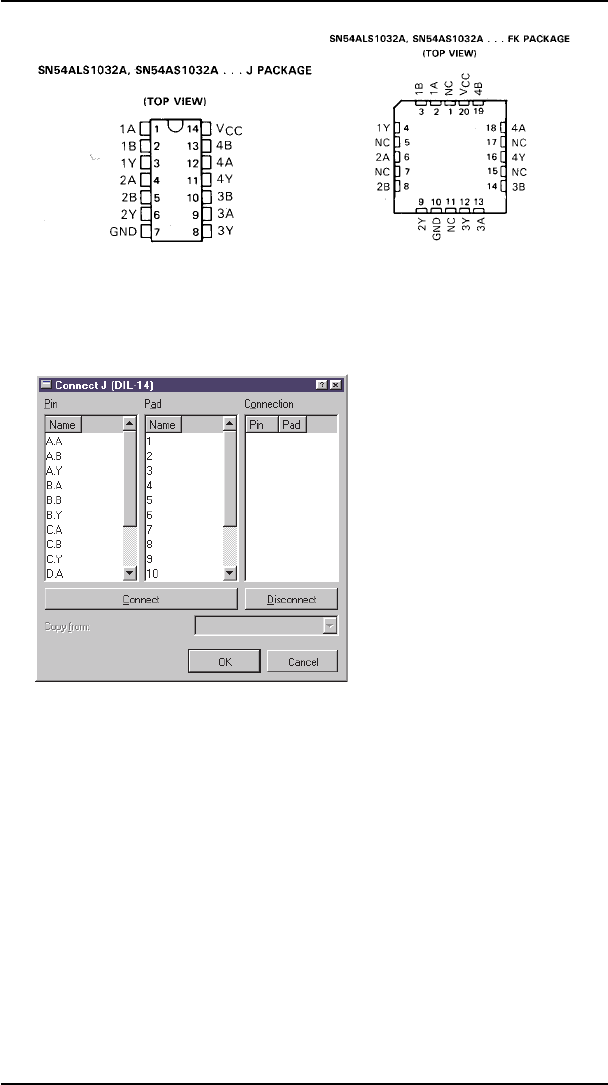

CONNECTdialog
The list of pins is on the left, and the pads are in the center. Click on a
pin-entry, and select the associated pad. Both entries are now marked.
You join them with the connect button. This pair now appears on the
right, in the Connection column. Join each pin to its pad in accordance
withthedatasheet.Finishthedefinitionbyclickingon OK.
Define the connections for the second package version, FK, in the same
way. Select the version, and click on the Connect button. The usual dia
-
logappearsintheconnectwindow.Proceedexactlyasdescribedabove.
Please note that six pads are not connected in this version. They are left
overinthe Pad column.Finishtheprocessbyclickingon OK.
There is now a green tick to the right of both package variants, and this
indicates that connection is complete. This is only true when every pin
isconnectedtoapad.
187
ComponentDesignExplainedthroughExamples
