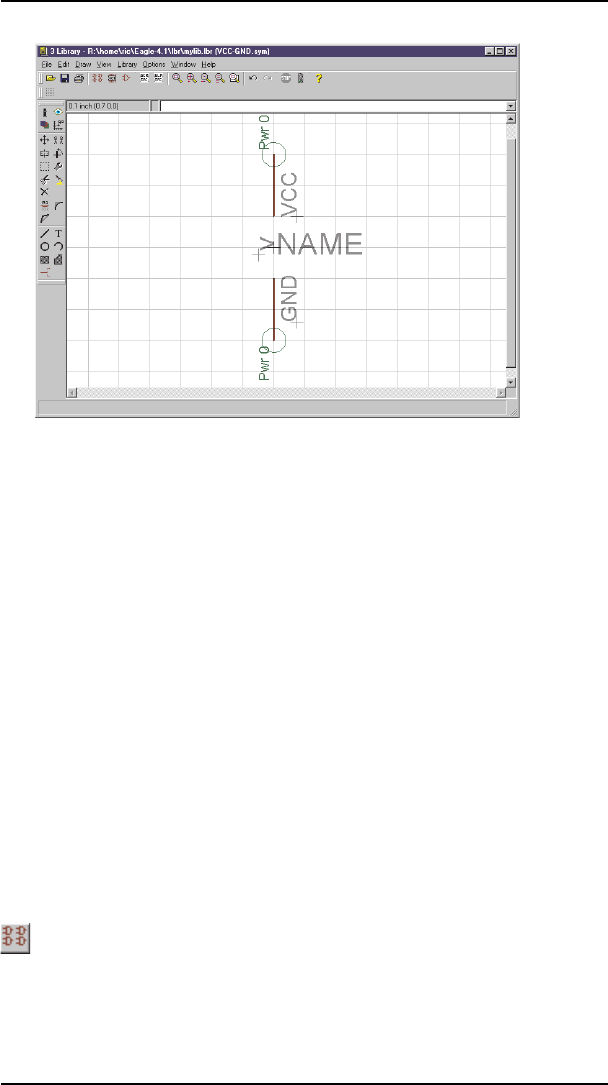

TheSymbolEditor:SupplySymbol
AssociatingthePackagesandSymbolstoForma
DeviceSet
We now come to the final step, the definition of the Device set. A De
-
vice set is an association of symbols and package variants to form real
components
A Device set consists of several devices, which use the same symbols for
theschematicbutdifferenttechnologiesorpackagevariants.
Defining a Device set or a device consists essentially of the following
steps:
•
Selectsymbol(s),namethemandspecifyproperties
•
Assignpackage(s)orspecifyvariants
•
SpecifytheassignmentofpinstopadsusingtheCONNECT
command
•
Definetechnologies(ifdesired/necessary)
•
Stateprefixandvalue
•
Describethedevice
Click on the Edit a device icon. Enter the name for the device on the
new line.
In our example this is a 541032A. This device is to be used in two differ
-
ent technologies, as the 54AS1032A and as the 54ALS1032A. A * is
184
