PinName
You assign pin names with the NAME command. In our symbol the two
inputpinsarenamed A and B,andtheoutputpinisnamed Y.
DrawtheSymbol
Use the WIRE command to draw the symbol in layer 94, Symbols. The
standard line thickness for the Symbol Editor is 10 mil. You may also
chooseanyotherlinethickness.
PlaceholdersforNAMEandVALUE
For the component labeling, use the TEXT command in the schematic
diagramtowrite
>NAME
inlayer95, Names and
>VALUE
in layer 96, Values. Place the two texts at a suitable location. It is possi
-
ble to move the texts again in the schematic diagram after using SMASH
to separate it. The symbol should now have the appearance shown in the
followingdiagram.
Save
Thisisagoodmomenttosavetheworkthatyouhavedonesofar.

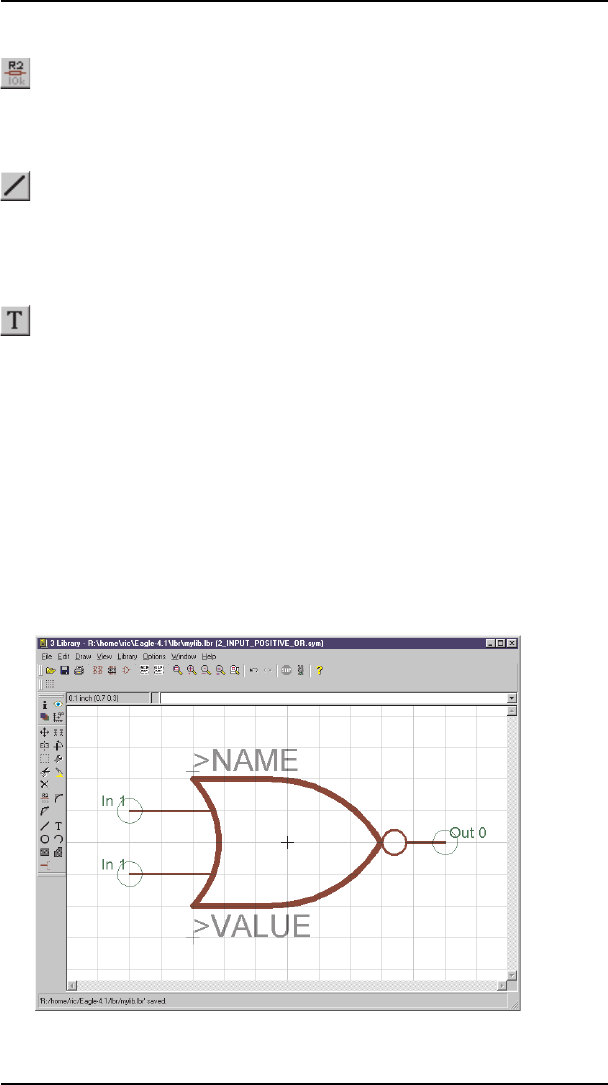

TheSymbolEditor:Logicsymbol(Americanrepresentation)
