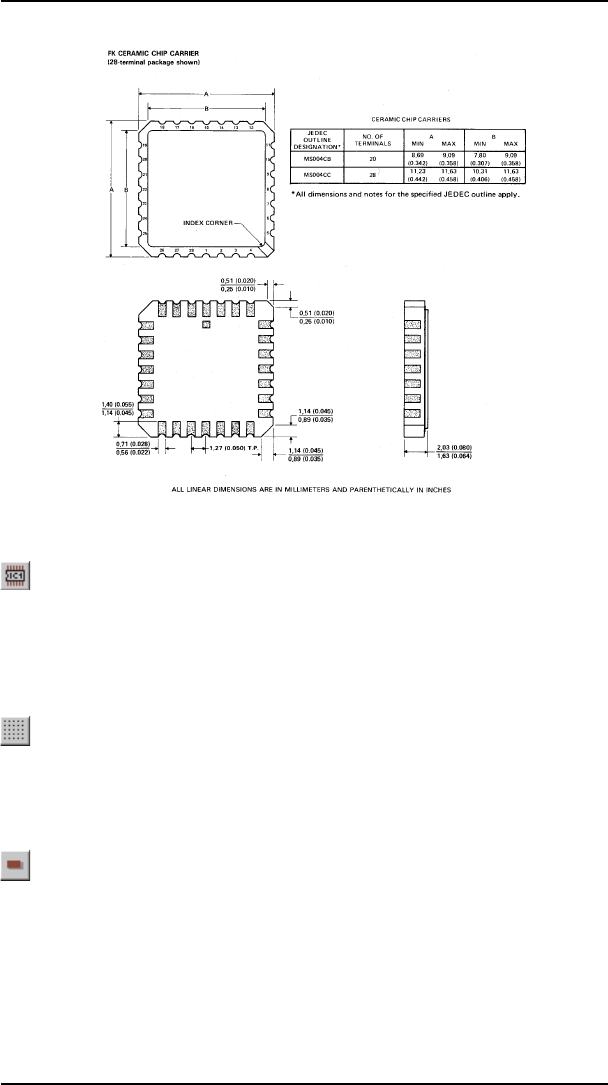

SMDpackage,FKversion.
Click again on the Edit a package icon, and enter the name of the pack
-
age in the New box in the edit menu. The package is to be called
LCC-20. Click on OK and confirm the question Create new package
‘LCC-20’? byanswering Ye s .
SettheGrid
Adjust the grid to 0.635 mm (0.025 inch), and let the grid lines be visi
-
ble. It is useful to define an alternative grid of 0.05 mm for designing
thispackage.
PlacingSMDSolderPads
SMD devices are generally defined on the top of the board; SMDs are
thereforealwaysinlayer1, To p .
If you do want to have components on the solder side, the item is if
needed reflected on the board with the MIRROR command. See also
thesectiononpage 199.
