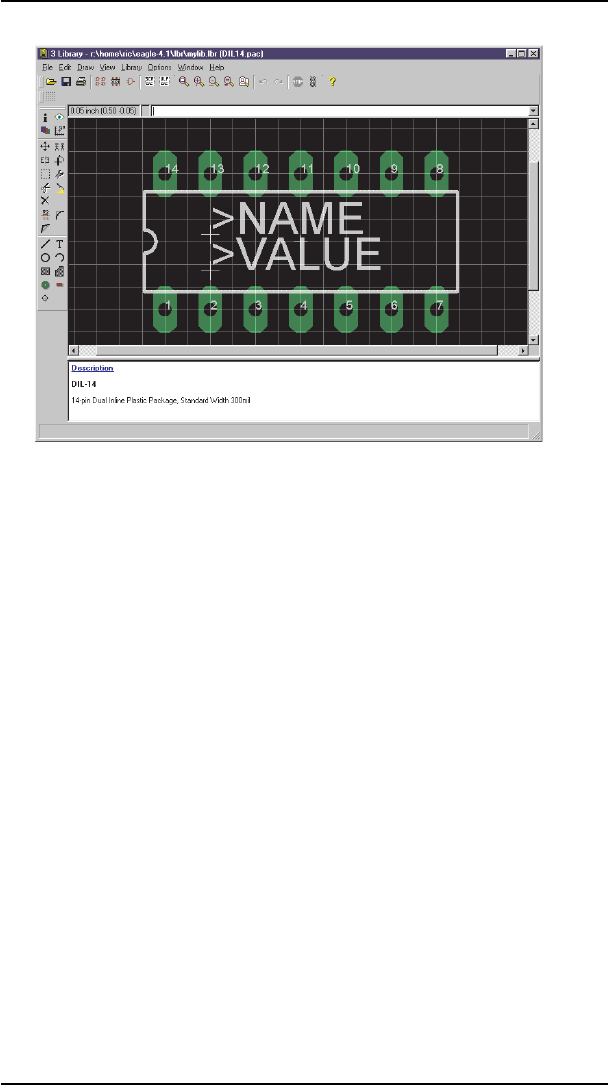

PackageEditorwithDIL-14
Save
At this stage if not before the library should be saved under its own
name(e.g. my_lib.lbr).
DefiningtheSMDPackage
The second type of housing for this component may be seen in the fol
-
lowingscaledrawing.
The size of the soldering areas is to be 0.8 mm x 2.0 mm. The SMD 1, at
0.8mmx3.4mm,islarger.
175
ComponentDesignExplainedthroughExamples
