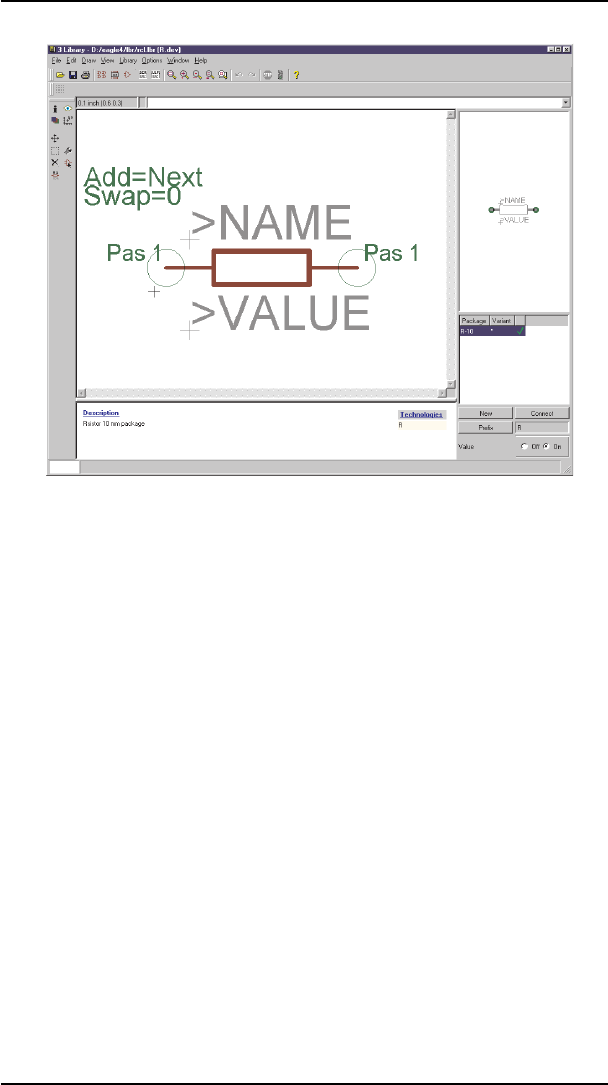

TheDeviceEditor:Fullydefinedresistor
Save
This completes definition of the resistor, and it can be fetched into the
schematic diagram. If you have not already saved the library, please do it
atthisstage!
Use
The newly created library has to be made available for the schematic or
layoutwiththehelpoftheUSEcommand.
This command has to be used in the Schematic or Layout Editor. It is
also possible to mark a library as in Use in the Control Panel's tree view.
See help for details. Now the library will be recognized by the ADD
commandanditssearchfunction.
168
EAGLEManual
