You can change the name of the gate or gates with the NAME com
-
mand. The name is unimportant for a device with only one gate, since it
doesnotappearintheschematic.
Keeptheautomaticallygeneratedname!
In the case of devices with several gates, the name of the particular gate
isaddedtothenameofthedevice.
Example:
The gates are called A, B, C and D, and the name of the component in
the schematic is IC1, so the names which appear are IC1A, IC1B, IC1C
andIC1D.

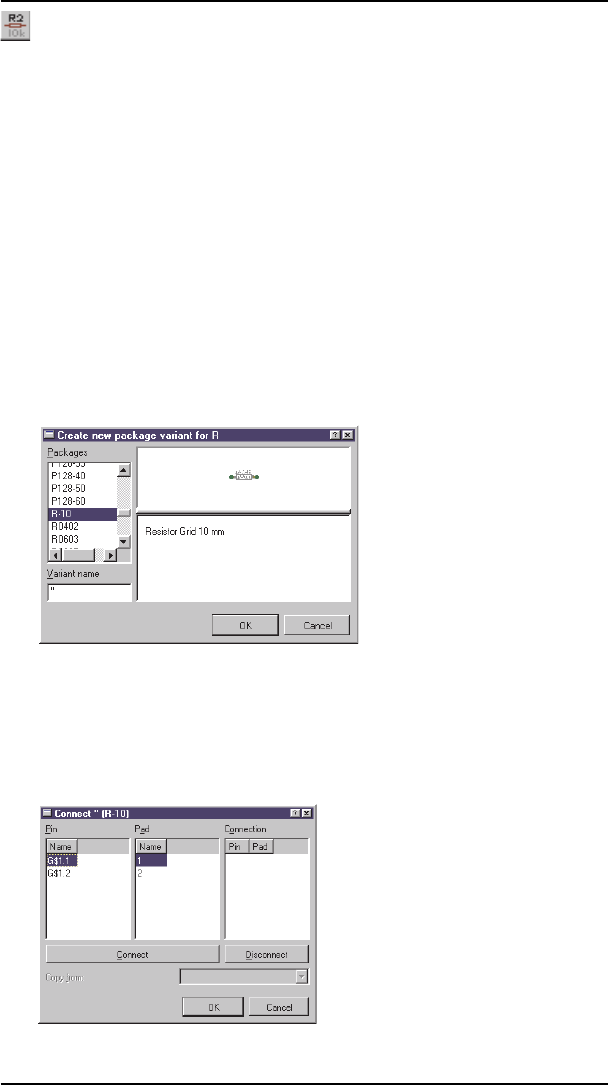

SelectingthePackage
Now click on the New button at the lower right of the Device Editor
window. Choose the R-10 package from the selection window, and enter
a name for the version. If only one package version is used, it is usual to
use two single quote marks ('') for the name of the package version. It is,
however,quitepossibletoassignaparticularname.
Thepackageselection
Connect - ConnectionsBetweenPinsandPads
With the CONNECT command you specify which pins are taken to
whichpackagepads.
TheCONNECTwindow
166
