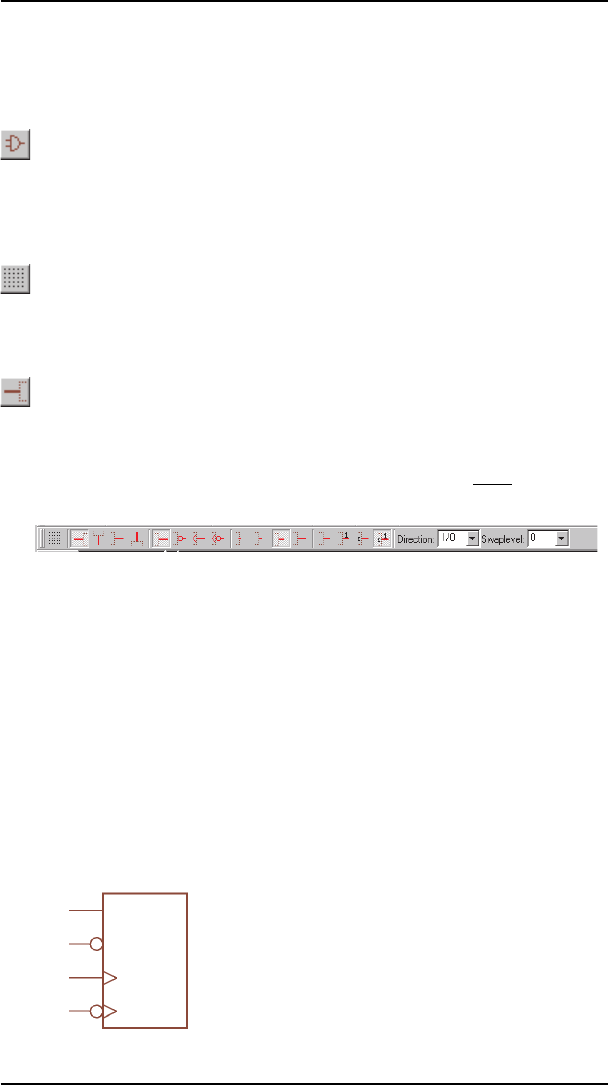

Resistor Symbol
DefineaNewSymbol
Select the symbol editing mode, and enter the symbol name R in the
New field. This name only has a meaning internal to the program, and
doesnotappearintheschematic.
SettheGrid
Now check that 0.1 inch is set as the grid size. The pins in the symbol
must beplacedonthisgrid,sincethisiswhatEAGLEexpects.
PlacethePins
Select the PIN command. You can now set the properties of these pins
in the parameter toolbar, before placing them with the left mouse but
-
ton. All these properties can be changed at a later stage with the
CHANGE command. Groups can again be defined (GROUP) whose
properties can then be altered with CHANGE and the right
mouse but
-
ton.Seealsopage 161.
Pincommand-Parametertoolbar
Orientation
Set the direction of the pins (Orientation parameter) using the four
left-hand icons in the parameter toolbar or, more conveniently, by rotat
-
ingwiththerightmousebutton.
Function
The function parameter is set with the next four icons on the parameter
toolbar. This specifies whether the symbol is to be shown with an inver
-
sion circle (Dot), with a clock symbol (Clk), with both (DotClk) or
simply as a stroke (None). The diagram illustrates the four representa
-
tionsononepackage.
PinFunctions
162
EAGLEManual
