however, in the tDocu layer, which is not subject to this limitation. In
the example of the resistor, the symbol can be drawn in layer 21, tPlace,
butthewires,whichgooverthepads,aredrawninlayer51, tDocu.
ThePackageEditor
Labeling

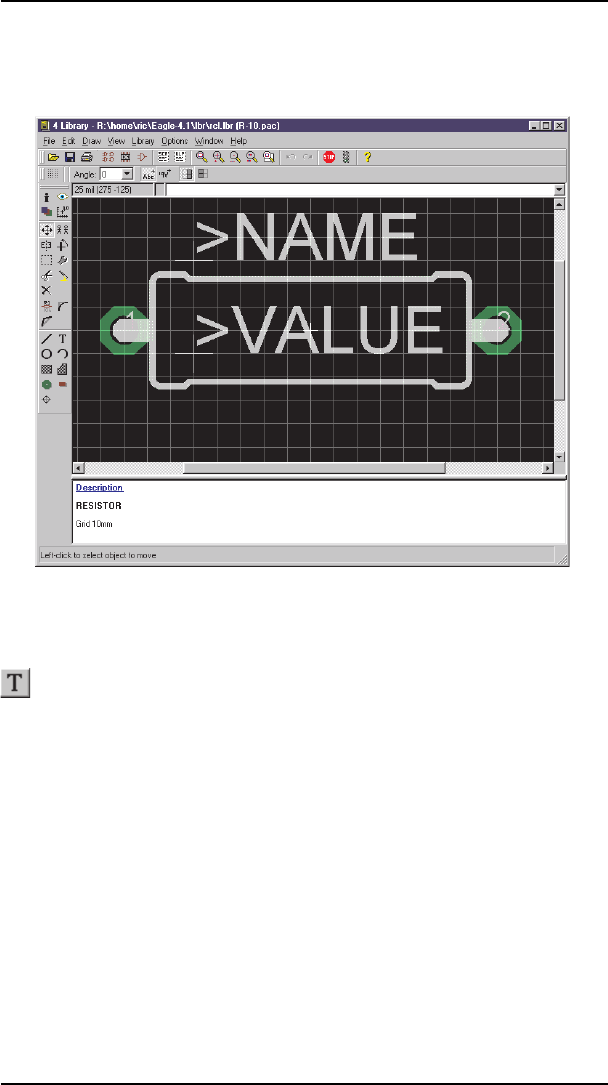

With the TEXT command you place the texts >NAME (in layer 25,
tNames) and >VALUE (in layer 27, tValues) in those places where in
the board the actual name and the actual value are to appear. 0.07 inch
for the text height (size) and 10% for the ratio (relationship of stroke
width to text height, which can only be set, using CHANGE, for vector
fonts)arerecommended.
SMASH and MOVE can be used later to change the position of this text
relativetothepackagesymbolontheboard.
In the case of ICs, for instance, the value corresponds to what will later
bethedevicename(e.g. 74LS00).
When working with only the Layout Editor, the value is specified in the
board.
160
EAGLEManual
