AllsignalsexceptVCCandGNDarerouted.
The Autorouter is started for all the signals that have not yet been laid
byclickingonthe OK button.
The Cancel menu item interrupts the AUTO command without storing
anychanges.

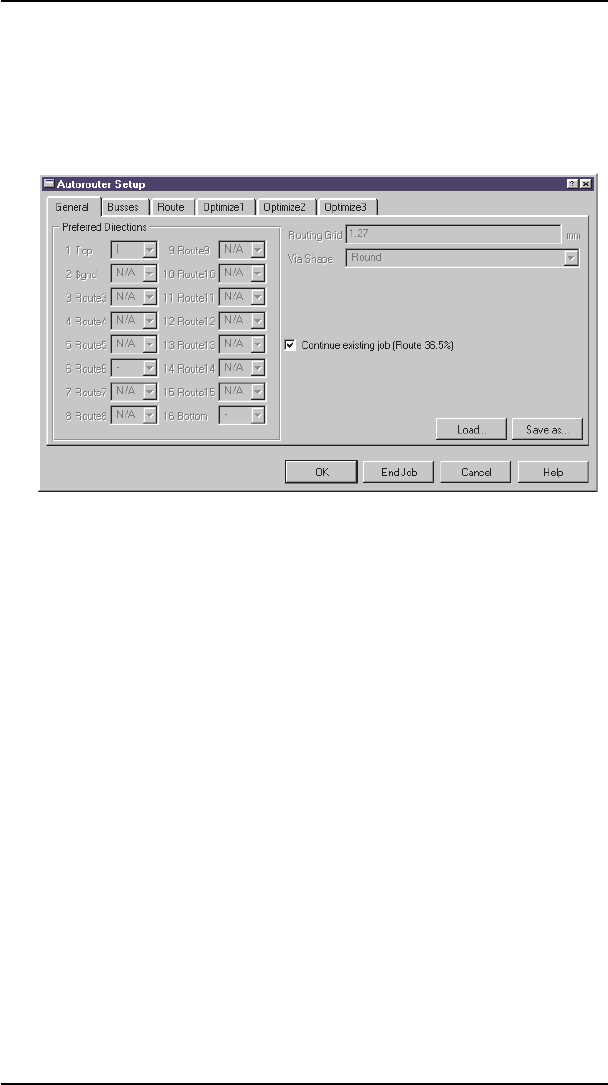

Autoroutersetup: Restartinganinterruptedjob
Do not at first make any changes to the parameters if you want to re
-
start an interrupted routing job. Use the Continue existing job check box
to decide whether you want to continue with an existing job, or whether
youwanttochoosenewsettingsfortheremainingsignals.
Endjob endstheautoroutingjobandloadsthepreviousroutingresult.
7.8 RoutingMulti-LayerBoards
Therearetwodifferentwaysofimplementing supplylayers.
•
Supplylayerswitha $-signatthestartofthelayername
•
Supplylayerswithpolygons
SupplyLayers
The definition of supply layers has already been described in the previ
-
oussectionunder PowerSupplyLayerswithOneSignal onpage 111.
Thefollowingpointsmustbeconsideredwhenautorouting:
•
Thelayernamespecifiesthesignalthatiscarriedbythislayer.The
layer$VCC,forexample,onlycarriestheVCCsignal.
•
Thelayerisrepresentedwithaninversedisplay.
