After routing the new track, the router tries to reroute all the tracks
which were removed. It may happen that a new ripup sequence must be
started to reroute one of these tracks. The router is then two ripup se
-
quences away from the position at which, because of a track which
could not be routed, it started the whole process. Each of the removed
tracks which cannot be rerouted starts a new ripup sequence. The maxi
-
mum number of such sequences is defined with the mnRipupSteps
parameter.
The parameter mnRipupTotal defines how many tracks can be removed
simultaneously.Thisvaluemaybeexceededincertaincases.
If one of these values is exceeded, the router interrupts the ripup pro
-
cess and reestablishes the status which was valid at the first track which
could not be routed. This track is considered as unroutable, and the
routercontinueswiththenexttrack.
7.7 The Autorouter Menu
When running the Autorouter with the AUTO command, the setup
menuappearsfirst.Allthenecessarysettingsaremadethere.

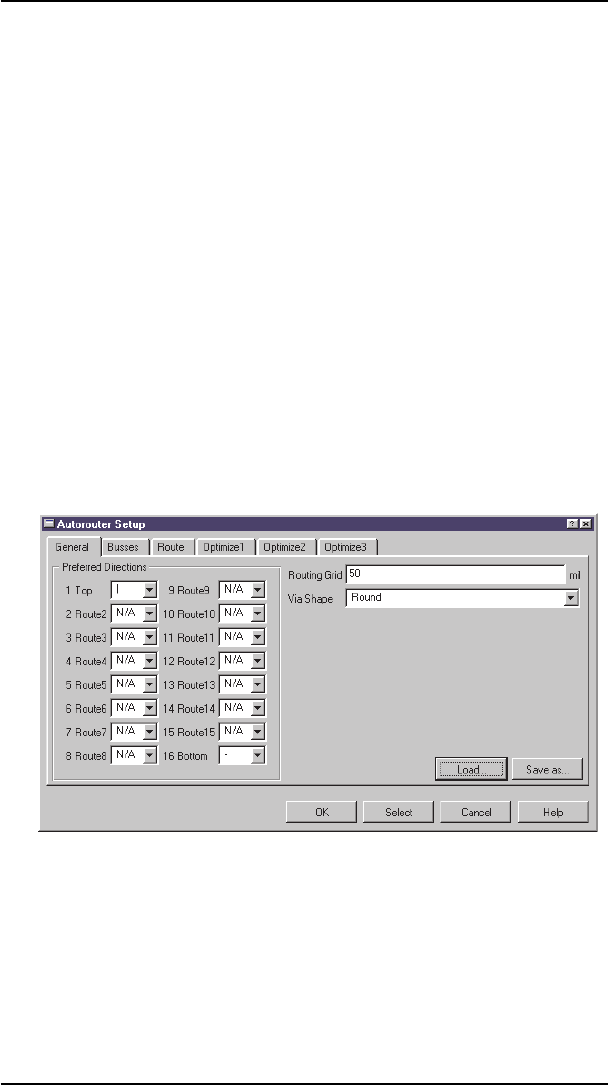

Autoroutersetup:Generalsettings(General tab)
This is where you specify the layers that may be used for routing and
which preferred directions apply. Click in the appropriate combo box
withthemouse,andselectthedesiredvalue.
Settingthepreferreddirections:
-horizontal
|vertical
/diagonalat45°
148
EAGLEManual
