After any library update, please carry out both an ERC on the schematic
andaDRConthelayout!
Individual components can, for instance, be updated with the aid of the
ADD command. If you use ADD to fetch a modified component from
a library, you will be asked whether all the older definitions of this type
shouldbeupdated.
Aftertheupdateyoucandeletethecomponentthatyoujustfetched.
AgainhereitiswisetocarryoutanERCandaDRCaftertheupdate!
6.6 PrintOutSchematicandLayout
Schematic diagrams, boards and also library elements can be printed out
withthe PRINTcommand.
Using DISPLAY you should first select the layers that you want to
print. The basic rule is: if you can see it in the editor, you will see it on
theprint.
Crosses marking coordinate origins for text, grid lines and polygons
that can’t be calculated (only the polygon contours are visible in the
LayoutEditorafterRATSNEST) areexceptionstothisrule.
When the printer icon on the action toolbar is clicked, the PRINT
dialogopens.

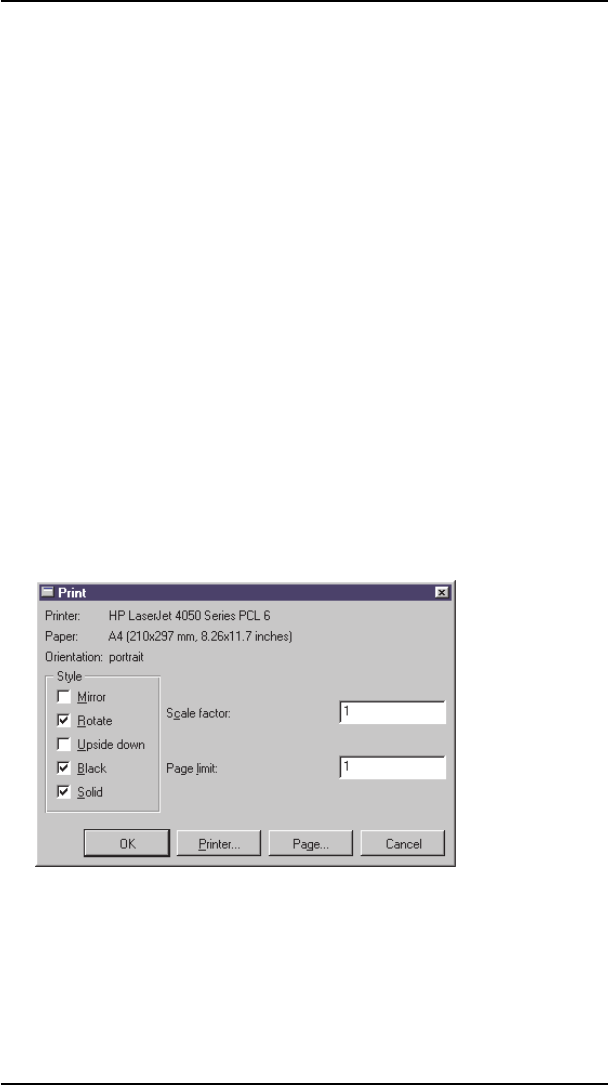

ThePRINTwindow
The currently selected printer is shown at the top of the window. The
selectedprintercanbealteredbymeansofthe Printer... button.
Style permitsanumberofoutputoptionstobeselected:
Mirror inverts the drawing from left to right, Rotate turns it 90 degrees,
and Upside down turns it through 180 degrees. If both are activated, a
rotationof270degreesistheresult.
If the Black option is chosen, a black-and-white printout is made.
