Example4:BlindViasintheInnerLayerStack
8-LayerBoard
Example5:
Layers1,2,3,4,5,6,7,and16areused.
Boardstructure:Threecores,prepregsoutside.
Connections:1-3,6-16(blindvias),2-3,4-5,6-7(buriedvias),
1-16(throughvias).

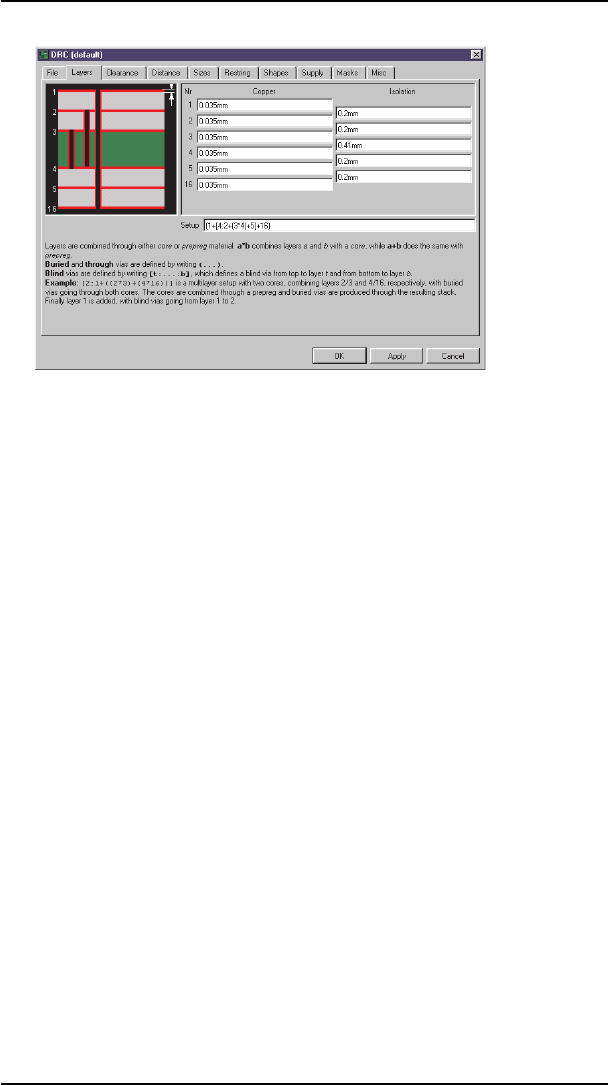

Setupexpression:
[3:1+(2*3)+(4*5)+(6*7)+16:6]
Explanation:
(2*3)+(4*5)+(6*7)
Threecores,eachwithburiedvias,arepressedtogetherandisolated
withprepregs.
1+(2*3)+(4*5)+(6*7)+16
Outercopperlayers1and16whichareisolatedthroughprepregs
arepressedontothislayerstack.
(1+(2*3)+(4*5)+(6*7)+16)
Parenthesisallowthroughviasfrom1-16.
[3:(1+(2*3)+(4*5)+(6*7)+16):6]
Blindviasfrom1-3and16-6.
