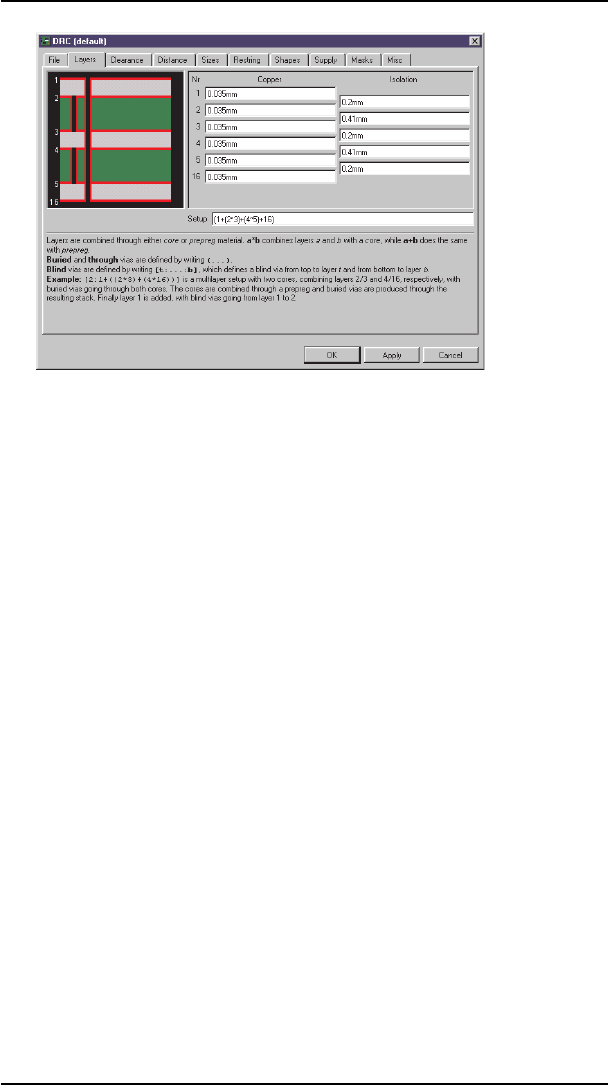

Example3:LayerSetupfora6-LayerBoard
The values for layer thickness used in these examples are fictive. Please
contactyourboardhousetogettheallowedvalues.
Example4:
Layers1,2,3,4,5,and16areused.
Boardstructure:Onecore,oneachsidetwoprepregs.
Connections:3-4(buriedvias),2-4(blindviasininnerlayerstack),
1-16(throughvias)
Setupexpression:
(1+[4:2+(3*4)+5]+16)
Explanation:
2+(3*4)+5
Thecorewithburiedvias.Oneprepregoneachside.
[4:2+(3*4)+5]
Blindviasfromlayer2to4.
1+[4:2+(3*4)+5]+16
Onthislayerstackaprepregoneachsideispressedon.
(1+[4:2+(3*4)+5]+16)
Parnethesisallowthroughviasfrom1to16.
128
EAGLEManual
