1+2*3+16
Onbothsidesofthecorecopperlayersarepressedonwithprepregs.
(1+2*3+16)
Theouterparenthesisdefinethroughviasfrom1-16.

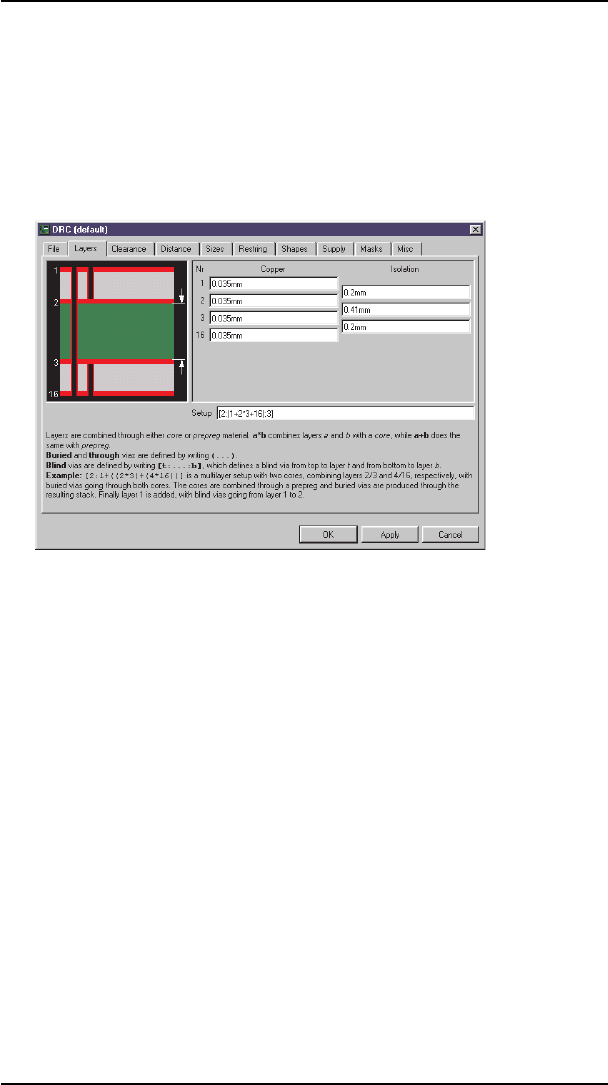

[2:(1+2*3+16):3]
Insquarebracketsandseparatedbyacolonblindviasaredefined.
Herefromlayer1to2and16to3.
Example2:LayerSetupfora4-LayerBoard
6-LayerBoard
Example3:
Layers1,2,3,4,5,and16areused.
Boardstructure:Twocores,prepregsoutside.
Connections:2-3,4-5(buriedvias),1-16(throughvias)
Setupexpression:
(1+(2*3)+(4*5)+16)
Explanation:
(2*3)+(4*5)
Twocoreswithburiedviasarepressedtogether.
1+(2*3)+(4*5)+16
Thislayerstackiscoveredwithouterlayers1and16whichare
isolatedwithprepregs.
(1+(2*3)+(4*5)+16)
Thewholeexpressioninparenthesisdefinesthroughviasfrom1-16.
