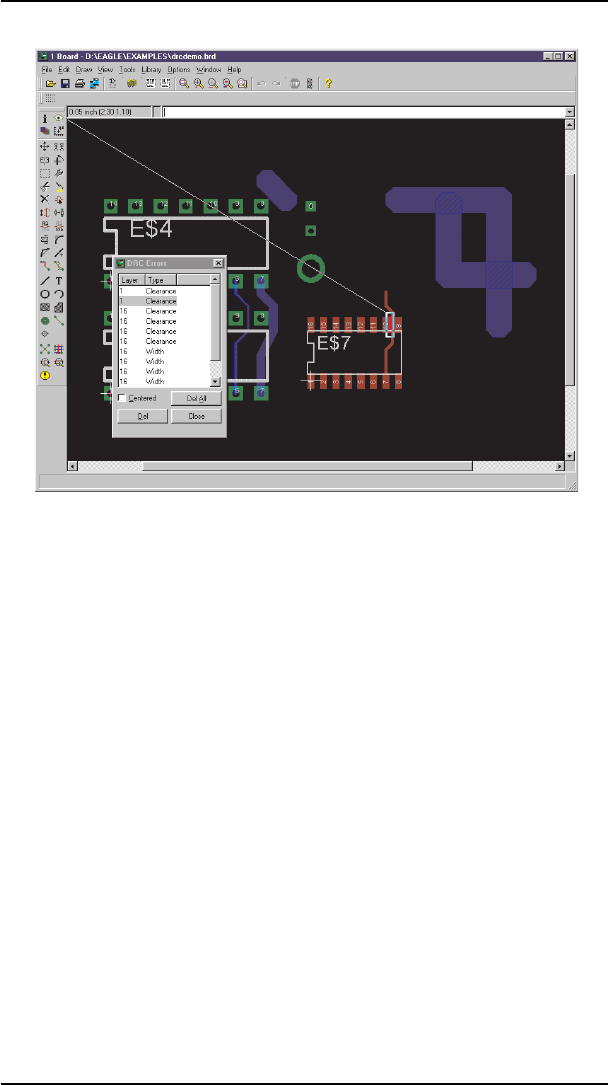

DRCerrorlistintheLayoutEditor
Signal layers which are not visible (DISPLAY command) will not be
checkedbytheDesignRuleCheck!
Error messagesandtheirmeaning
Angle:
Tracks are not laid in an angle of 0, 45, 90 or 135°. This check can be
switchedonoroffintheDesignRules(Misc tab).
Default:off.
BlindViaRatio:
The limit of the ratio of depth to drill diameter is exceeded. In this case
youhavetoadjustthevia'sdrilldiameter(seeDesignRules, Sizes tab).
Clearance:
Clearance violation between copper elements. The settings of the De
-
sign Rules' Clearance tab and the value for Clearance of a given net class
will be checked. In addition the Isolate value will be taken into conside
-
ration for polygons with the same rank and polygons which are defined
aspartofapackage.
To deactivate the clearance check between elements that belong to the
samesignal,usethevalue0for Samesignals inthe Clearance tab.
Dimension:
Distance violation between smds, pads, and connected copper objects
and a dimension line (drawn in Layer 20, Dimension), like the board's
outlines. Defined through the value for Copper/Dimension in the
118
