Boardcommand:Createthelayoutfromtheschematic

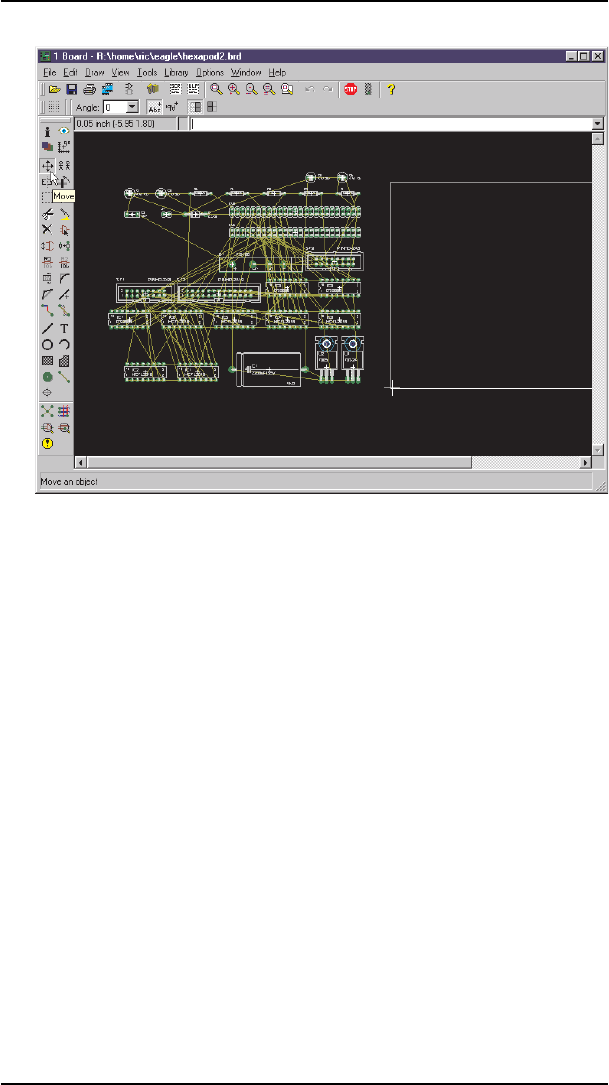

The devices are automatically placed at the left of the board. The board
outline is drawn as a simple line in layer 20, Dimension. The outline of
an eurocard is displayed in the Professional and Standard editions, a
half-eurocardintheLightedition.
If you wish, you may alter the size or shape of the empty board with the
MOVE and SPLIT commands. Please note the hints in the help func
-
tion for WIRE and MITER. It's easily possible to draw round outlines,
too.
You can also delete the outline and place a frame from a library (such as
19inch.lbr)withADD.
A script file can, alternatively, be read by the SCRIPT command. The
euro.scr file,forinstance,canbeused.Simplytype
SCRIPTEURO
onthecommandline.
Theboardoutlineservessimultaneouslyasaboundaryfortheauto-
router(ifpresent).
