yields a restring value of only 6 mil. For a board made in standard tech
-
nology this is extremely fine, and cannot easily be made. It might well
involveextracosts.Inthiscaseaminimumvalueof10milisgiven.
If you like to define a restring with a fixed width, use the same value for
minimumandmaximum.Thevalueinpercenthasnoeffectinthiscase.
Set the check boxes Diameter, and the via/pad diameter will be taken
into consideration for the inner layers. This can be of interest if a pre-
defined pad or via diameter exceeds the calculated value. Otherwise the
pad or via in the inner layers would be smaller than in the outer layers. If
you want pads/vias to have the same diameter in all layers, set the option
Diameter.
The option is set off, by default, for new created boards, but will be set
on for boards that are updated from version 3.5 or prior because in these
versions pads and vias had the same diameter in all layers. Thus the up
-
dateprocessdoesnotchangetheoriginallayout.
Allthevaluescanalsobegiveninmillimeters(forexample0.2mm).
Shapes
Smd:
A rounding factor can be specified here for SMD pads. The value can be
between0%(norounding)and100%(maximumrounding).

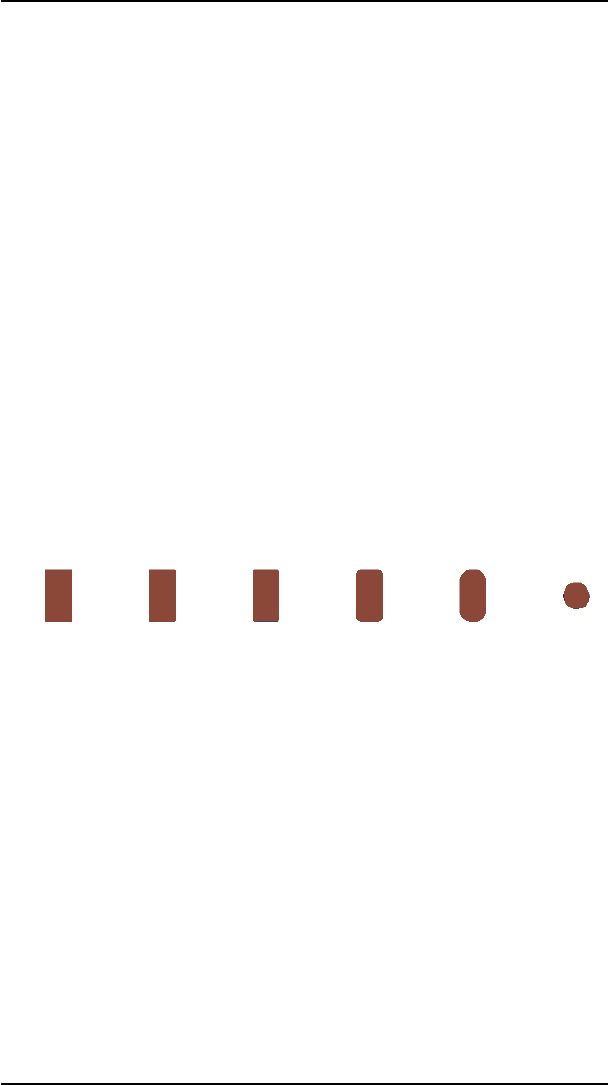

Roundness:0-10-25-50-100[%].Right:100%,square
A square SMD has been placed instead of an oblong one on the far right
of the diagram. After assigning the property Roundness = 100%, the
SMDbecomesround.
Pad:
This is where the form of the pads is specified. It is possible to give dif
-
ferentsettingsforthetopandbottomlayers.
The As in library option adopts the form defined in the Package Editor.
Clickingon Apply showsthechangeimmediatelyintheLayoutEditor.
Pads within inner layers are always round, the diameter being deter
-
minedbytherestringsettings.
Provided a pad was given the First flag in the library one can specify a
certainshapeforallthosepadsinthelayout.
