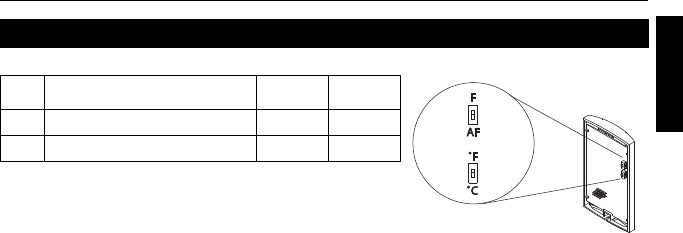

Configuration switches are on the back of the faceplate.
* See page 3 for definition of each mode.
- To select the F Mode, connect the floor temperature
sensor (see page 8) and place the switch in the F position.
- To select the AF Mode, proceed as follows: Connect the
floor temperature sensor (see page 8). Place the switch in
the F position. If the thermostat displays Er, the sensor is improperly connected or damaged. If the
thermostat displays a temperature reading, place the switch in the AF position.
- To select the A Mode, place the switch in the AF position but do NOT connect the floor temperature
sensor.
Setting the configuration switches
# Configurations Up Down
S1 Displayed temperature unit °F °C
S2 Temperature control mode * F AF
