Chapter 12: BGP Configuration Guide
158 SmartSwitch Router User Reference Manual

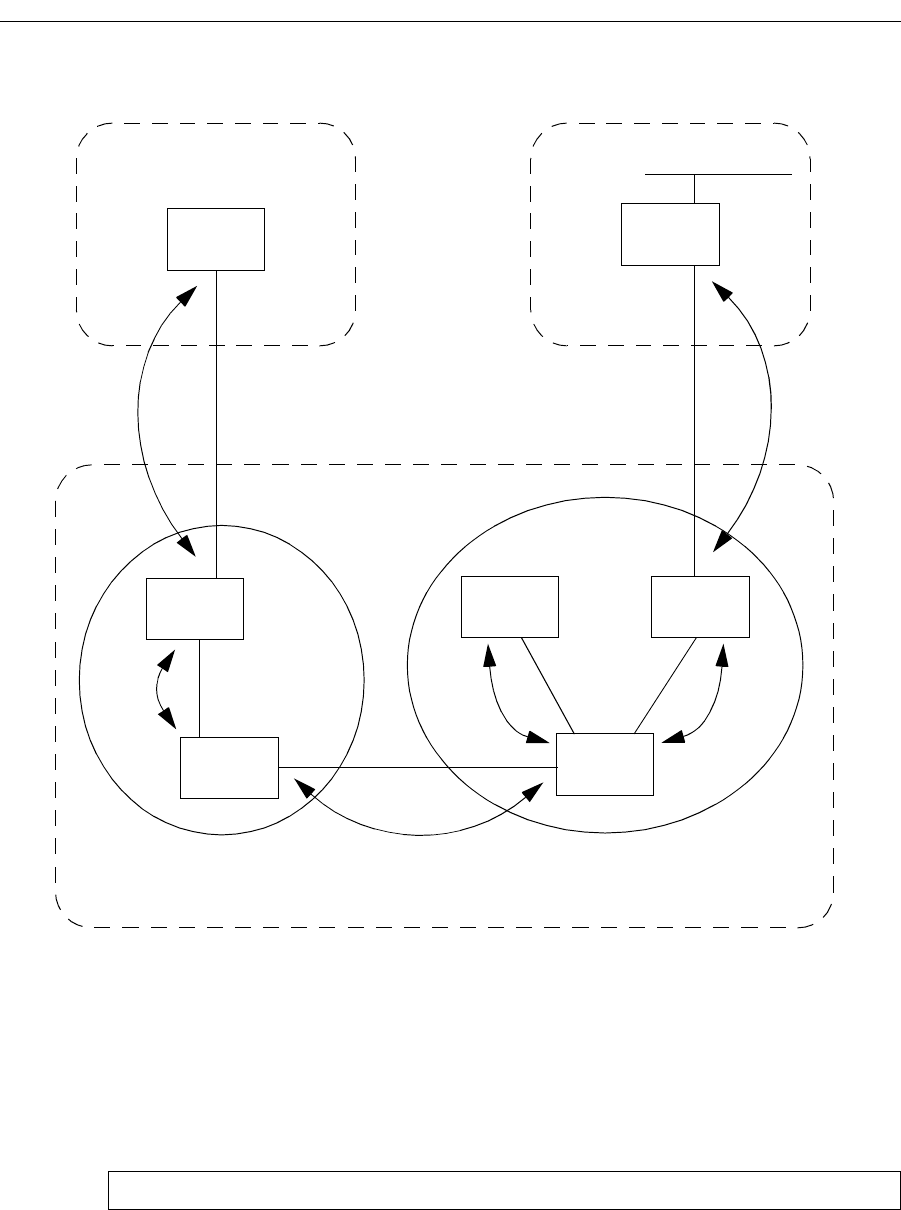

Figure 17 shows a sample configuration that uses route reflection.
Figure 17. Sample BGP Configuration (Route Reflection)
In this example, there are two clusters. Router SSR10 is the route reflector for the first
cluster and router SSR11 is the route reflector for the second cluster. Router SSR10 has
router SSR9 as a client peer and router SSR11 as a non-client peer.
The following line in router SSR10’s configuration file causes it to be a route reflector.
AS-64902
AS-64900
SSR11
SSR8
SSR13SSR12
SSR9
SSR10
AS-64901
IBGP
Cluster
Client
IBGP
Cluster
Client
IBGP
Non-Cluster
Client
IBGP
Cluster
Client
EBGP
Peer
EBGP
Peer
SSR14
192.68.222.1
192.68.20.2
192.68.20.1
172.16.30.2
bgp set peer-group SSR9 reflector-client
