SmartSwitch Router User Reference Manual 143

Chapter 12: BGP Configuration Guide

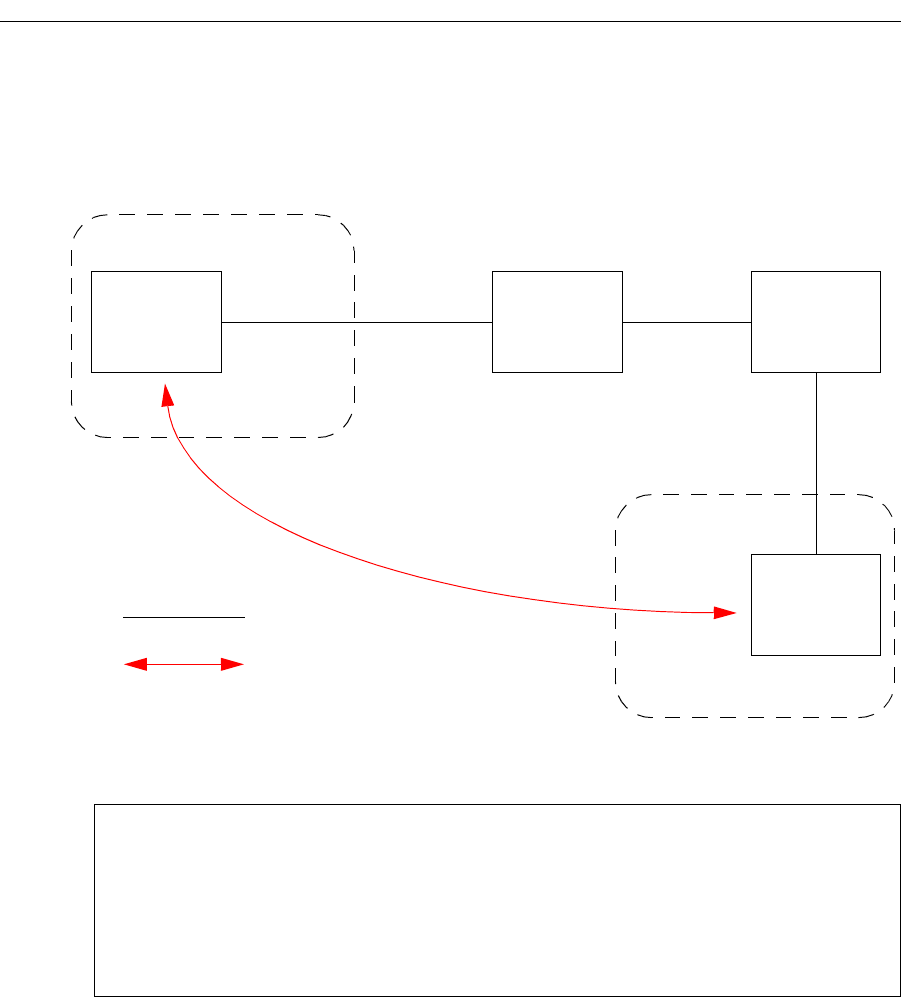

This sample configuration shows External BGP peers, SSR1 and SSR4, which are not

connected to the same subnet.

The CLI configuration for router SSR1 is as follows:

Physical Link

Legend:

Peering Relationship

SSR1

16.122.128.1/16

SSR3

AS-64800

AS-64801

SSR4

SSR2

16.122.128.3/16

17.122.128.3/16

17.122.128.4/16

18.122.128.3/16

18.122.128.2/16

bgp create peer-group ebgp_multihop autonomous-system 64801 type external

bgp add peer-host 18.122.128.2 group ebgp_multihop

! Specify the gateway option, which indicates EBGP multihop. Set the

! gateway option to the address of the router that has a route to the

! peer.

bgp set peer-host 18.122.128.2 gateway 16.122.128.3 group ebgp_multihop
