Chapter 9: VRRP Configuration Guide
94 SmartSwitch Router User Reference Manual

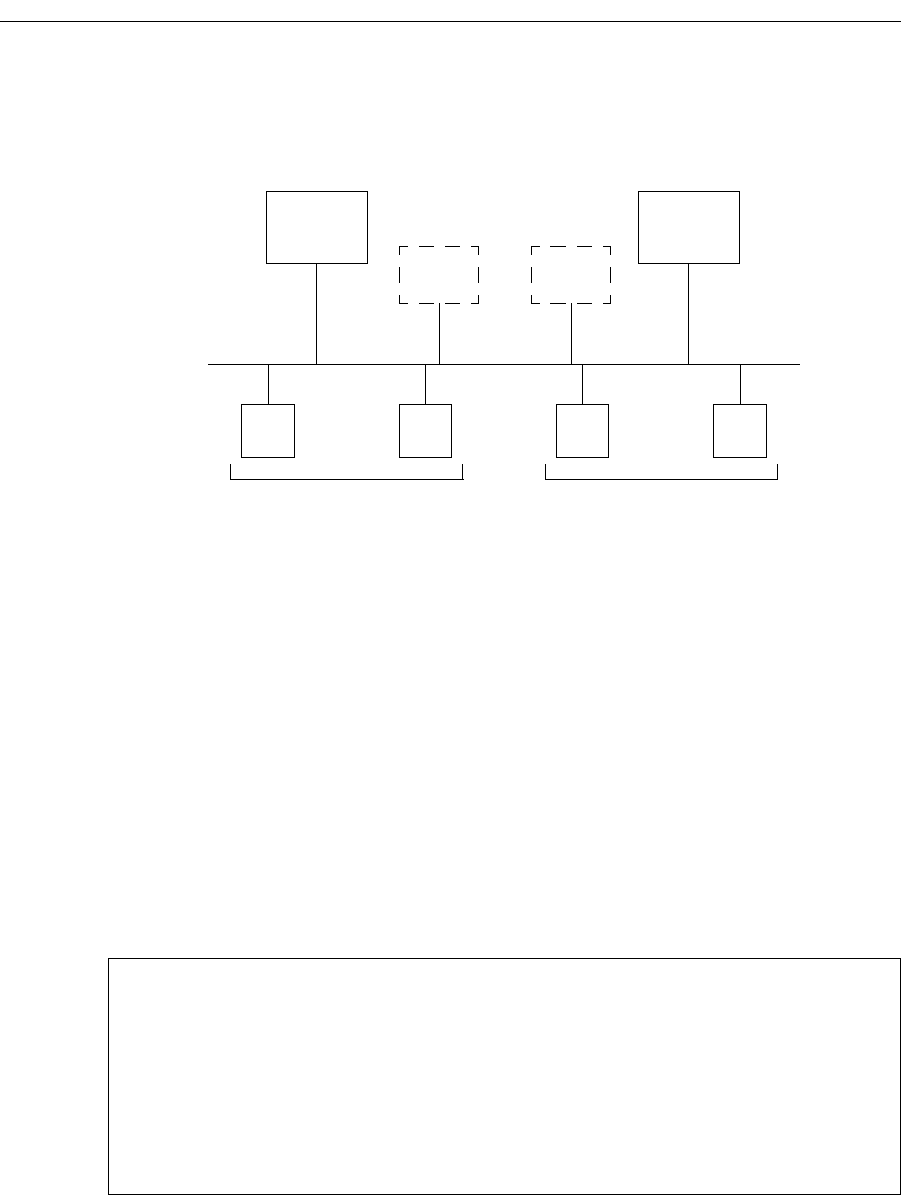

Figure 6. Symmetrical VRRP Configuration
In this configuration, half the hosts use 10.0.0.1/16 as their default route, and half use
10.0.0.2/16. IP address 10.0.0.1/16 is associated with virtual router
VRID=1, and IP address
10.0.0.2/16 is associated with virtual router
VRID=2.
If Router R1, the Master for virtual router
VRID=1, goes down, Router R2 would take over
the IP address 10.0.0.1/16. Similarly, if Router R2, the Master for virtual router
VRID=2,
goes down, Router R1 would take over the IP address 10.0.0.2/16.
Configuration of Router R1
The following is the configuration file for Router R1 in Figure 6.
Router R1 is the owner of IP address 10.0.0.1/16. Line 4 associates this IP address with
virtual router
VRID=1, so Router R1 is the Master for virtual router VRID=1.
R1 R2
H1 H2 H3 H4
Default Route = 10.0.0.1/16
Master for VRID=1
Default Route = 10.0.0.2/16
Backup for VRID=2
Master for VRID=2
Backup for VRID=1
Interface Addr. =
10.0.0.1/16
VRID=1
;
Addr. =
10.0.0.1/16
VRID=2
;
Addr. =
10.0.0.2/16
VRID=1
10.0.0.1/16
Interface Addr. =
10.0.0.2/16
VRID=1
;
Addr. =
10.0.0.1/16
VRID=2
;
Addr. =
10.0.0.2/16
VRID=2
10.0.0.2/16
1: interface create ip test address-netmask 10.0.0.1/16 port et.1.1
!
2: ip-redundancy create vrrp 1 interface test
3: ip-redundancy create vrrp 2 interface test
!
4: ip-redundancy associate vrrp 1 interface test address 10.0.0.1/16
5: ip-redundancy associate vrrp 2 interface test address 10.0.0.2/16
!
6: ip-redundancy start vrrp 1 interface test
7: ip-redundancy start vrrp 2 interface test
