C-Media Xear 3D Sound Solution For USB Multi-Channel User Manual Rev. 1.0

6. User Interface and Function Control

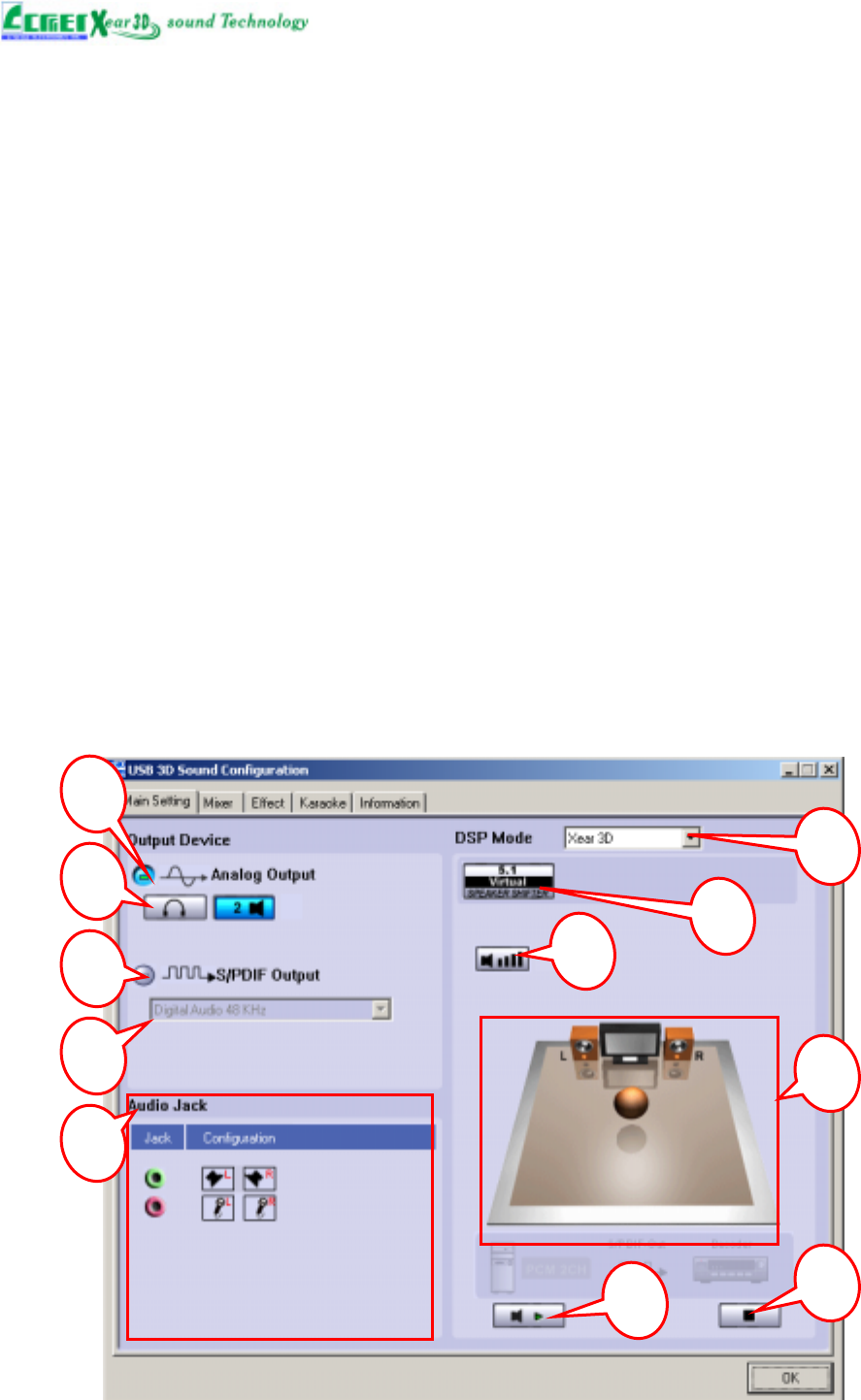

Main Setting

Using Analog Output or Digital S/PDIF-Out

1.Analog Output：turn on this button then can select analog output channels mode.

2.Analog Output channels Mode：Earphone, 2CH, 4CH, 6Ch and 8CH for selected.

3.Digital Output：turn on this button then can select SPDIF Out data format.

4.Digital Output Mode：Dolby RTCE, PCM for selected.

5.Audio Jack Connected Display

6.DSP Mode：pull down to select different DSP Mode. (Default support Xear 3D)

7.Virtual SPEAKER SHIFTER：can open SPEAKER SHIFTER windows for control.

(For detail information see the next page)

8.Digital Volume Control：can open each channel to adjust digital volume. (For detail

information see the next page)

9.Channel Display & Speaker Test：can show analog output channel status and

directly click speaker graphic can do sound testing.

10.Auto Sound Test：can auto testing every channel sound effect.

11.Stop Auto Sound Test：can stop auto testing.
