Molding Type Module IGBT,
2-in-1 Package, 1200 V and 300 A
FEATURES
• 10 μs short circuit capability
•V
CE(on)
with positive temperature coefficient
• Maximum junction temperature 150 °C
• Low switching losses
• Rugged with ultrafast performance
• Low inductance case
• Fast and soft reverse recovery antiparallel FWD
• Isolated copper baseplate using DCB (Direct Copper
Bonding) technology
• Material categorization: For definitions of compliance
please see www.vishay.com/doc?99912
TYPICAL APPLICATIONS
• Switching mode power supplies
• Inductive heating
• Electronic welder
DESCRIPTION
Vishay’s IGBT power module provides ultra low conduction
loss as well as short circuit ruggedness. It is designed for
applications such as electronic welder and inductive
heating.
Note
(1)
Repetitive rating: Pulse width limited by maximum junction temperature.
PRODUCT SUMMARY
V
CES
1200 V
I
C
at T
C
= 80 °C 300 A
V
CE(on)
(typical)
at I
C
= 300 A, 25 °C
3.10 V

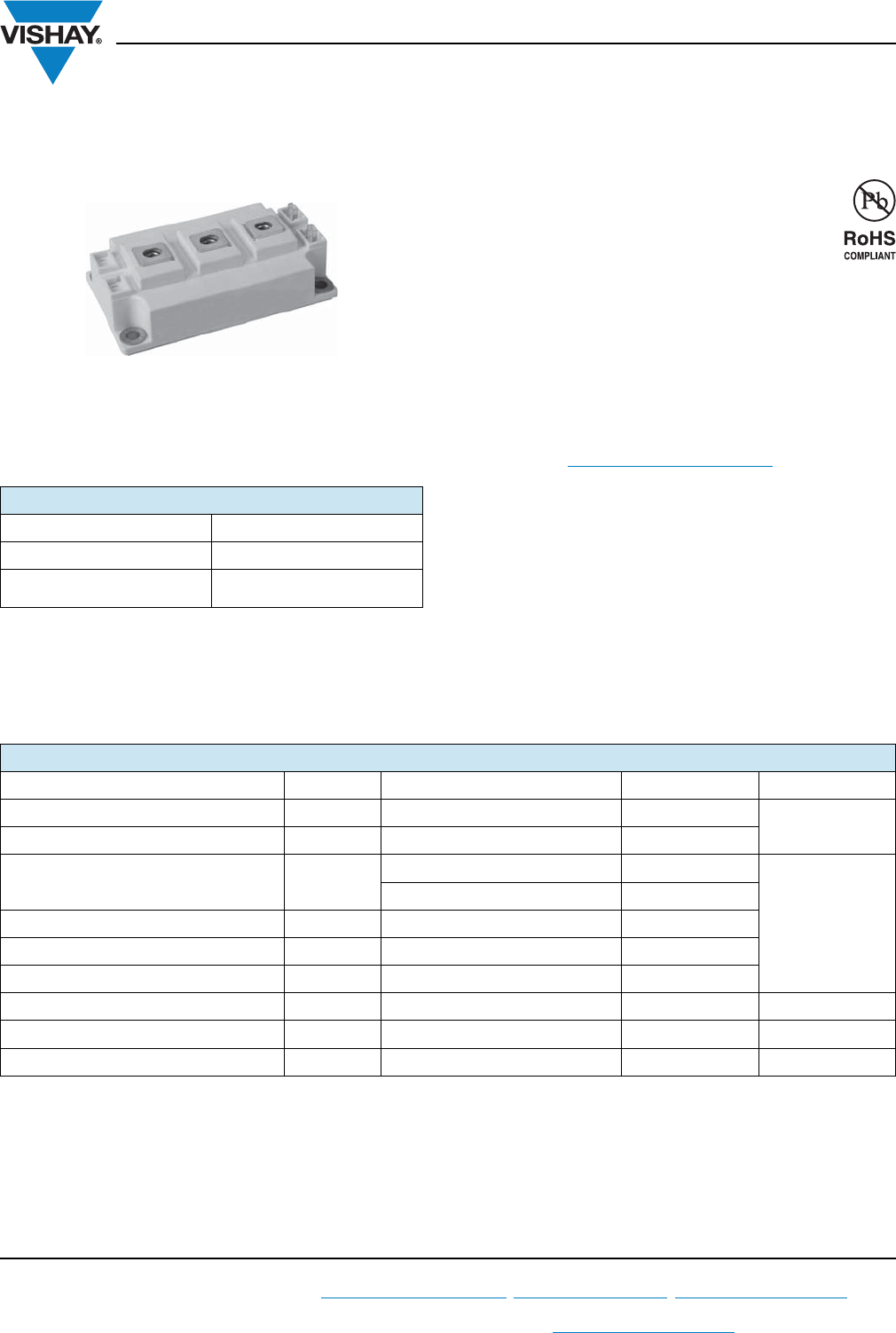

Double INT-A-PAK
ABSOLUTE MAXIMUM RATINGS (T
C
= 25 °C unless otherwise noted)
PARAMETER SYMBOL TEST CONDITIONS MAX. UNITS
Collector to emitter voltage V
CES
1200
V
Gate to emitter voltage V
GES
± 20
Collector current I
C
T
C
= 25 °C 530
A
T
C
= 80 °C 300
Pulsed collector current I
CM
(1)
t
p
= 1 ms 600
Diode continuous forward current I
F
T
C
= 80 °C 300
Diode maximum forward current I
FM
t
p
= 1 ms 600
Maximum power dissipation P
D
T
J
= 150 °C 2119 W
Short circuit withstand time t
SC
T
J
= 125 °C 10 μs
RMS isolation voltage V
ISOL
f = 50 Hz, t = 1 min 2500 V
