Intellimod™ Module
Dual-In-Line Intelligent
Power Module
30 Amperes/600 Volts
PS21267-P
PS21267-AP
108/10 Rev. 01
Description:
DIP-IPMs are intelligent power
modules that integrate power
devices, drivers, and protection
circuitry in an ultra compact
dual-in-line transfer-mold package
for use in driving small three
phase motors. Use of 5th gen-
eration CSTBT Chip Technology,
DIP packaging, and application
specific HVICs allow the designer
to reduce inverter size and overall
design time.
Features:
£ Compact Packages
£ Single Power Supply
£ Integrated HVICs
£ Direct Connection to CPU
Applications:
£ Washing Machines
£ Refrigerators
£ Air Conditioners
£ Small Servo Motors
£ Small Motor Control
Ordering Information:
PS21267-P (short pin) /
PS21267-AP (long pin) are 600V,
30 Ampere DIP Intelligent Power
Modules.

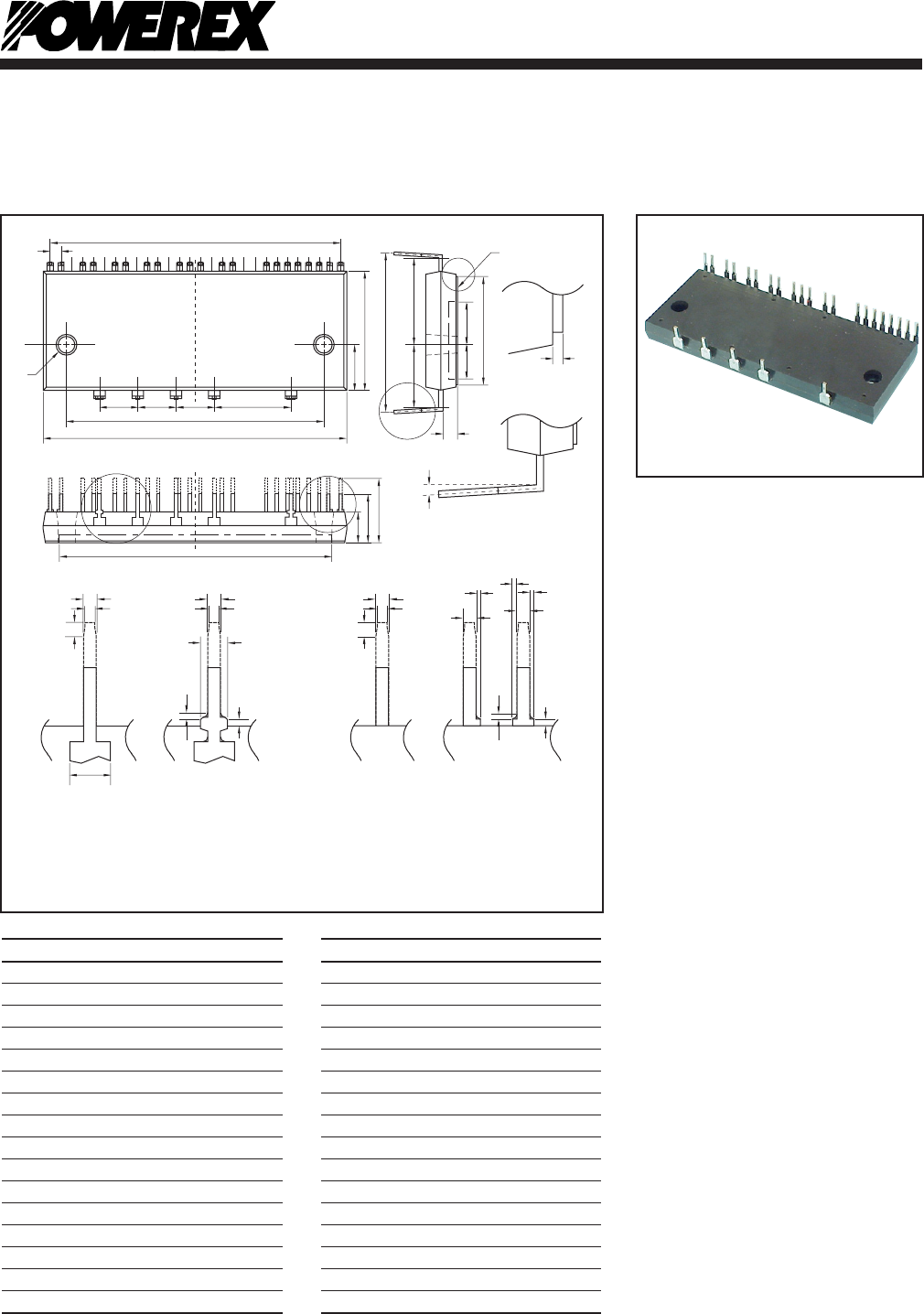

Outline Drawing and Circuit Diagram
6 VP1
5 VP
26 N
U
N
19
24 V
23 U
22 P
21 W
N
25 W
20 V
N
7 VVFB
9 WP
11 VPC
10 VP1
12 VWFB
3 VUFB
2 VP1
1 UP
4 VUFS
8 VVFS
16 CIN
15 VNC
17 CFO
18 FO
13 VWFS
14 VN1
TERMINAL CODE
A
H
E
GGG F
J
C
B K
M
L
N
Q
P
R
W
D
S
Y
AC
Z
Y
Z
AF
AG
AF
AF
AH
AH
AH
AA
AA
AB
AD
AE
AD
AE
AB
X
T
U
V
HEATSINK SIDE
HEATSINK SIDE
2625242322
212019181716151413121110987654321
DETAIL "C"
All outer lead terminals are with Pb-free solder plating.
DETAIL "D"
DETAIL "B"
DETAIL "B"
DETAIL "A"
DETAIL
"A"
DETAIL "C"
(5 PINS, t = 0.7)
DETAIL "D"
(21 PINS, t = 0.7)
Dimensions Inches Millimeters
A 2.98 75.6
B 1.22±0.02 31.0±0.5
C 0.45±0.02 11.5±0.5
D 3.11±0.02 79.0±0.5
E 2.64±0.015 67.0±0.3
F 0.79±0.01 20.0±0.3
G 0.4±0.015 10.0±0.3
H 0.11±0.015 2.8±0.3
J 0.18±0.01 Dia. 4.5±0.2 Dia.
K 1.37±0.02 34.9±0.5
L 0.53±0.02 13.4±0.5
M 0.84±0.02 21.4±0.5
N 1.10±0.02 28.0±0.5
P 0.45 11.5
Q 0.33 8.5
R 0.15±0.01 3.8±0.2
Dimensions Inches Millimeters
S 2.80 71.0
T 0.62±0.02 16.0±0.5
U 0.49±0.02 12.8±0.5
V 0.31±0.02 8.0±0.5
W 0.02±0.01 0.5±0.2
X 0 ~ 5° 0 ~ 5°
Y 0.04±0.01 1.0±0.2
Z 0.03 0.7
AA 0.03±0.01 0.7±0.2
AB 0.04 1.0
AC 0.1 2.5
AD 0.02 Max. 0.5 Max.
AE 0.024±0.02 0.6±0.5
AF 0.03±0.01 0.8±0.02
AG 0.024 0.6
AH 0.02±0.01 0.45±0.02
