Owner's manual

1
Single IGBTMOD™
HVIGBT
400 Amperes/4500 Volts
CM400HB-90H
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 [phone]

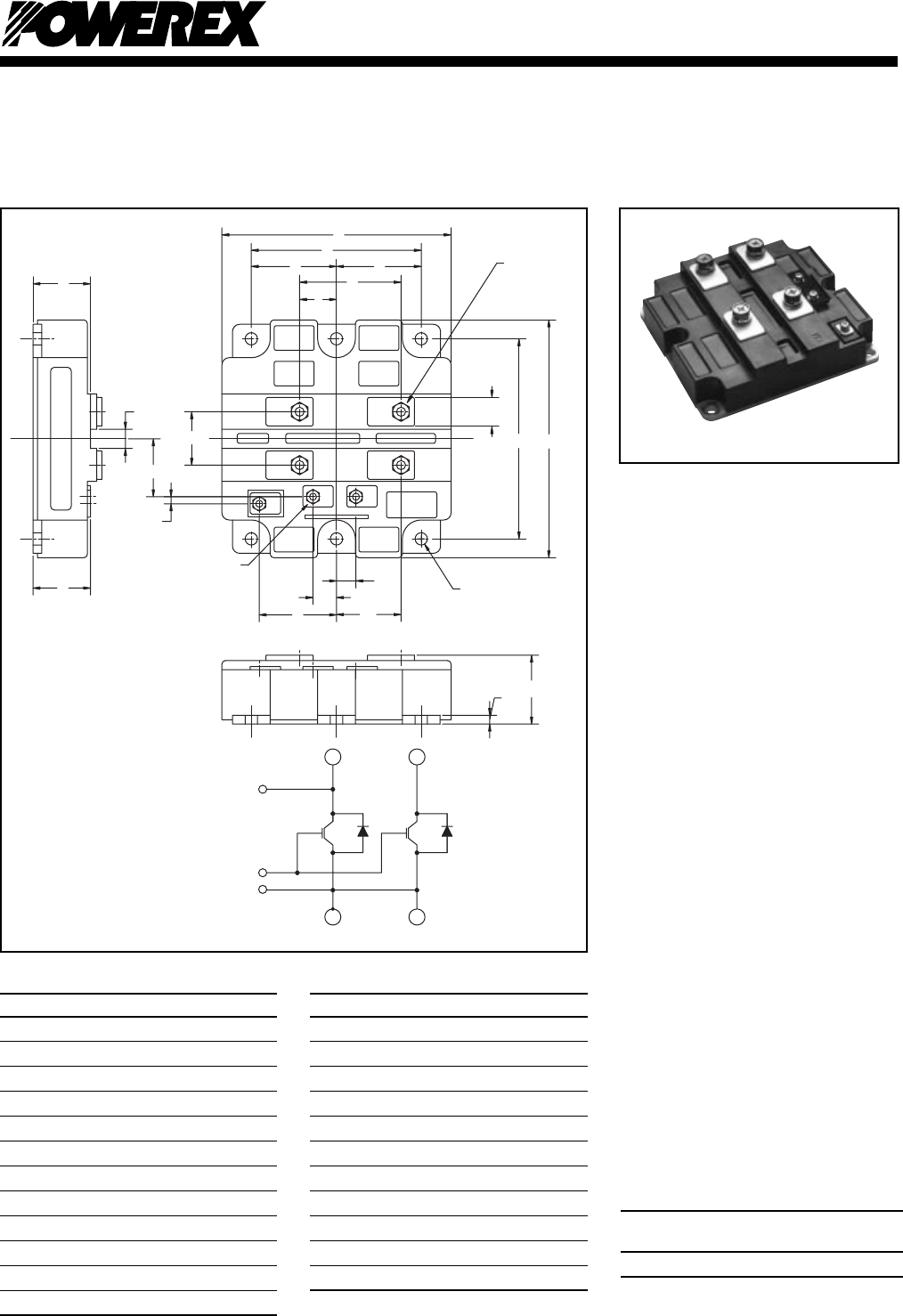

Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
A 5.12 130.0
B 5.51 140.0
C 1.50 38.0
D 4.48 114.0
E 4.88±0.01 124.0±0.25
F 1.57 40.0
G 0.79 20.0
H 0.41 10.35
J 0.42 10.65
K 1.92 48.8
L 2.24±0.01 57.0±0.25
M 1.71 43.5
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module consists
of one IGBT Transistor with a
reverse-connected super-fast
recovery free-wheel diode.
All components and interconnects
are isolated from the heat sinking
baseplate, offering simplified
system assembly and thermal
management.
Features:
□ Low Drive Power
□ Low V
CE(sat)
□ Super-Fast Recovery
Free-Wheel Diode
□ Isolated Baseplate for Easy
Heat Sinking
Applications:
□ Traction
□ Medium Voltage Drive
□ High Voltage Power Supplies
Ordering Information:
Example: Select the complete
part module number you desire
from the table below -i.e.
CM400HB-90H is a 4500V (V
CES
),
400 Ampere Single IGBTMOD™
Power Module.
Type Current Rating V
CES
Amperes Volts (x 50)
CM 400 90
Dimensions Inches Millimeters
N 2.42 61.5
P 0.59 15.0
Q 1.57 40.0
R 0.20 5.2
S 1.16 29.5
T 1.10 28.0
U M4 Metric M4
V M8 Metric M8
W 0.28 Dia. Dia.7.0
X 0.20 5.0
Y 0.71 18.0
W
(6 TYP)
U NUTS
(3 TYP)
T
Q
R
F
K
M
H
J
S
A
D
LL
G
EB
V NUTS
(4 TYP)
C
X
E
G
E
C
C
E
C
C
C
CM
EG
E
C
E
P
N
Y
