Dual IGBTMOD™
U-Series Module
400 Amperes/1200 Volts
CM400DU-24H
Powerex, Inc., 200 Hillis Street, Youngwood, Pennsylvania 15697-1800 [phone]

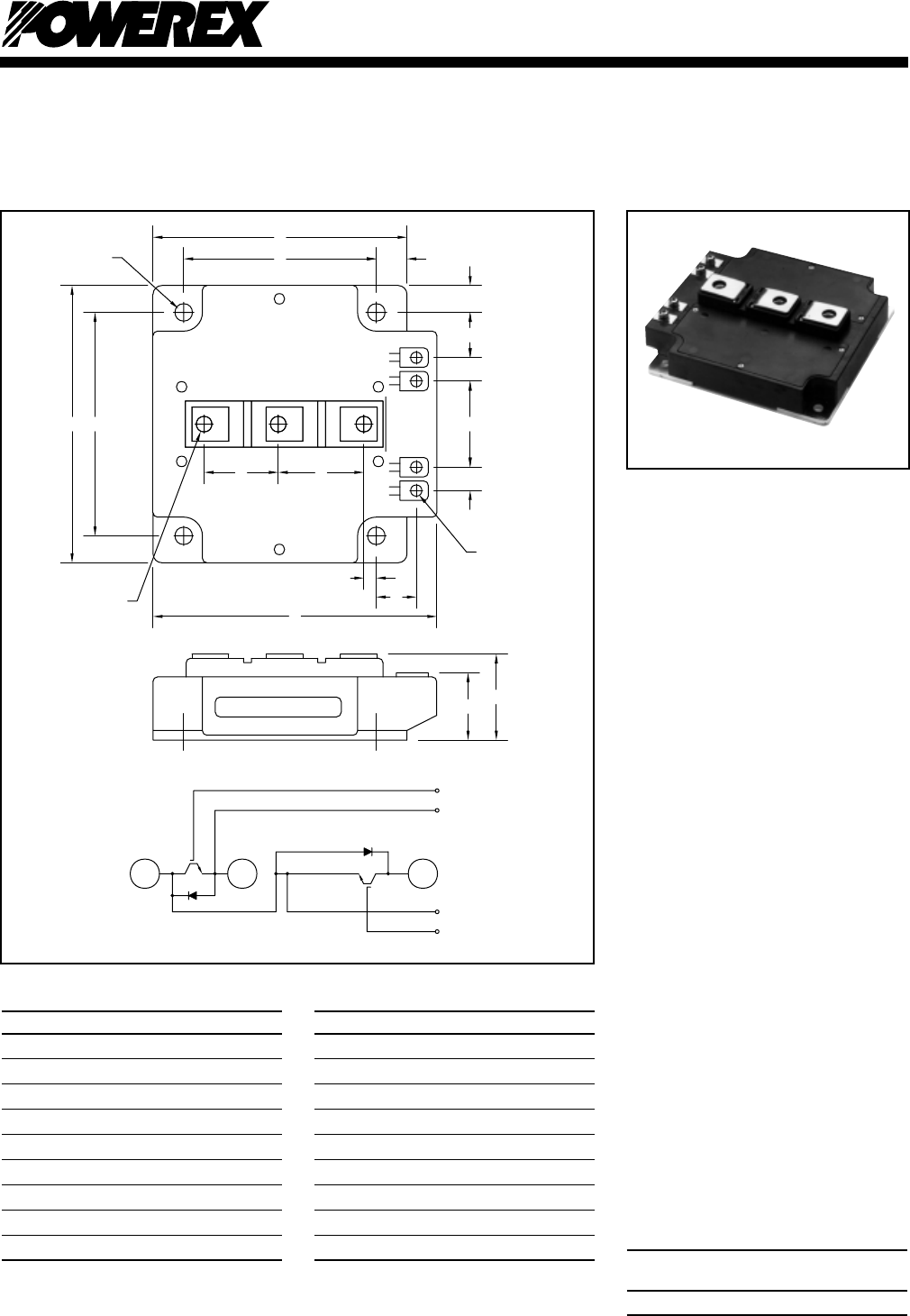

Outline Drawing and Circuit Diagram
1
Dimensions Inches Millimeters
A 5.12 130.0
B 5.12 130.0
C 1.38 35.0
D 0.96 24.5
E 4.33 110.0
F 0.39 10.0
G 0.39 10.0
H 0.81 20.5
J 0.53 14.5
Dimensions Inches Millimeters
K 1.65 42.0
L 1.42 36.0
M 1.72 43.8
N 0.54 13.8
P 0.45 11.5
Q 5.51 140.0
R 0.26 Dia .6.5 Dia.
SM8 M8
TM4 M4
Description:
Powerex IGBTMOD™ Modules are
designed for use in switching
applications. Each module consists
of two IGBT Transistors in a half-
bridge configuration with each
transistor having a reverse-
connected super-fast recovery
free-wheel
diode. All components and
interconnects are isolated from the
heat sinking baseplate, offering
simplified system assembly and
thermal management.
Features:
□ Low Drive Power
□ Low V
CE(sat)
□ Discrete Super-Fast Recovery
Free-Wheel Diode
□ Isolated Baseplate for Easy
Heat Sinking
Applications:
□ AC Motor Control
□ Motion/Servo Control
□ UPS
□ Welding Power Supplies
□ Laser Power Supplies
Ordering Information:
Example: Select the complete
module number you desire from
the table - i.e. CM400DU-24H is a
1200V (V
CES
), 400 Ampere Dual
IGBTMOD™ Power Module.
Current Rating V
CES
Type Amperes Volts (x 50)
CM 400 24
C2E1
E2
G1
C1
E1
E2
G2
C2E1
E2
C1
G2E2E1G1
A
B
E
E
J
K
J
F
Q
D
C
N
P
ML
H
G
"R" (4 PLACES)
"S" (3 PLACES)
"T" (4 PLACES)
