Instruction Manual
3
CM200TL-12NF
Six IGBTMOD™ NF-Series Module
200 Amperes/600 Volts
Powerex, Inc., 200 E. Hillis Street, Youngwood, Pennsylvania 15697-1800 (724) 925-7272

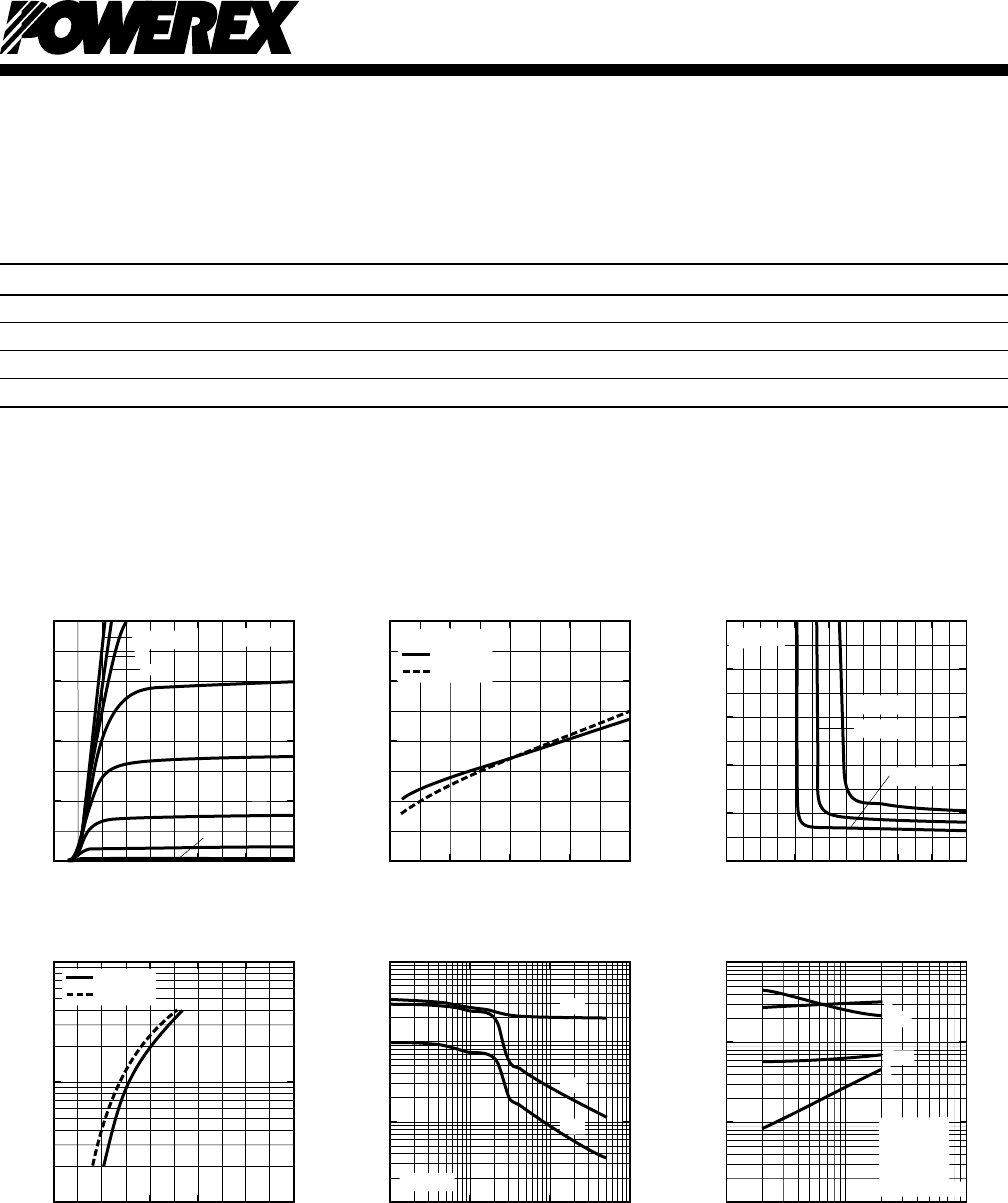

Thermal and Mechanical Characteristics, T
j
= 25°C unless otherwise specified
Characteristics Symbol Test Conditions Min. Typ. Max. Units
Thermal Resistance, Junction to Case* R
th(j-c)
Q Per IGBT 1/6 Module — — 0.14 °C/W
Thermal Resistance, Junction to Case* R
th(j-c)
D Per FWDi 1/6 Module — — 0.22 °C/W
Contact Thermal Resistance R
th(c-f)
Per 1/6 Module, Thermal Grease Applied — 0.051 — °C/W
External Gate Resistance R
G
3.1 — 31 Ω
*T
C
, T
f
measured point is just under the chips.
�
