Six IGBTMOD™
NF-Series Module
200 Amperes/600 Volts
CM200TL-12NF
1
Description:
Powerex IGBTMOD™ Modules
are designed for use in switching
applications. Each module
consists of six IGBT Transistors in
a three phase bridge configuration,
with each transistor having a
reverse-connected super-fast
recovery free-wheel diode. All
components and interconnects
are isolated from the heat sinking
baseplate, offering simplified
system assembly and thermal
management.
Features:
£ Low Drive Power
£ Low V
CE(sat)
£
Discrete Super-Fast Recovery
Free-Wheel Diode
£ Isolated Baseplate for Easy
Heat Sinking
Applications:
£ AC Motor Control
£ Motion/Servo Control
£ UPS
£ Photovoltaic/Fuel Cell
Ordering Information:
Example: Select the complete
module number you desire from
the table below -i.e.
CM200TL-12NF is a 600V (V
CES
),
200 Ampere Six-IGBTMOD™
Power Module.
Type Current Rating
V
CES
Amperes Volts (x 50)
CM 200 12

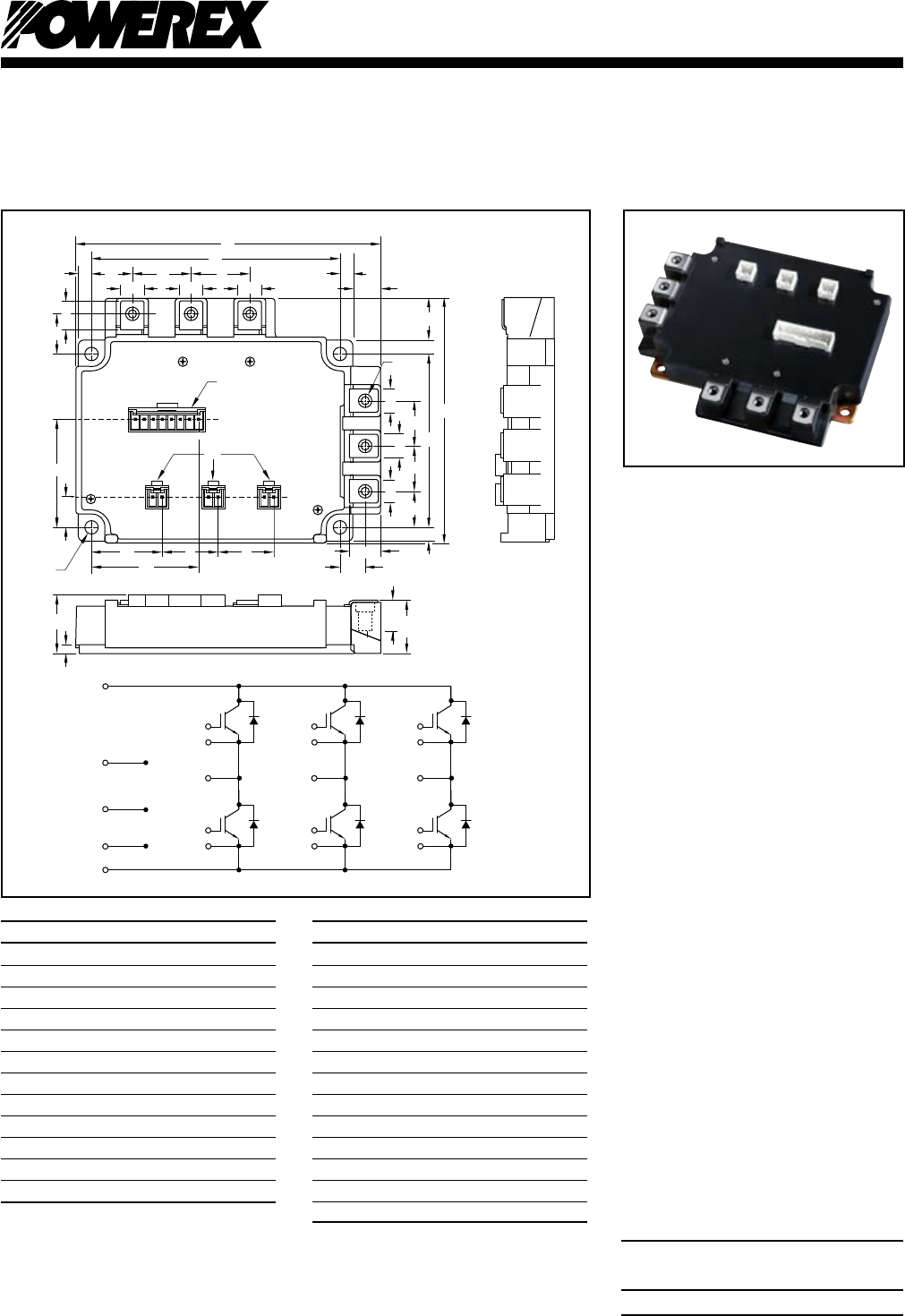

Outline Drawing and Circuit Diagram
Dimensions Inches Millimeters
A 5.32 135.0
B 4.33±0.02 110.0±0.5
C 3.07±0.02 78.0±0.5
D 4.33±0.02 110.0±0.5
E 0.24 6.05
F 0.69 17.5
G 0.41 10.5
H 1.02 26.0
J 1.92 48.75
K 0.51 13.0
L 0.71 18.0
M 0.46 11.7
Dimensions Inches Millimeters
N 0.74 18.7
P 0.54 13.75
Q 0.22 5.5 Dia.
R 1.20 30.5
S 0.98 25.0
T 1.82 46.3
U 0.43 11.0
V M5 M5
W 0.65 16.5
X 0.78 20.0
Y 1.04 26.5
Z 0.16 4.0
AA 0.95+0.04/-0.02 24.1+1.0/-0.5
Housing Types (J.S.T. Mfg. Co. Ltd.)
AB – B8P-VH-FB-B
AC – B2P-VH-FB-B
