Installation User Manual

II0139A
Page 2 of 2
C. E. Niehoff & Co. • 2021 Lee Street • Evanston, IL 60202 Tech Services Hotline 800-643-4633
T

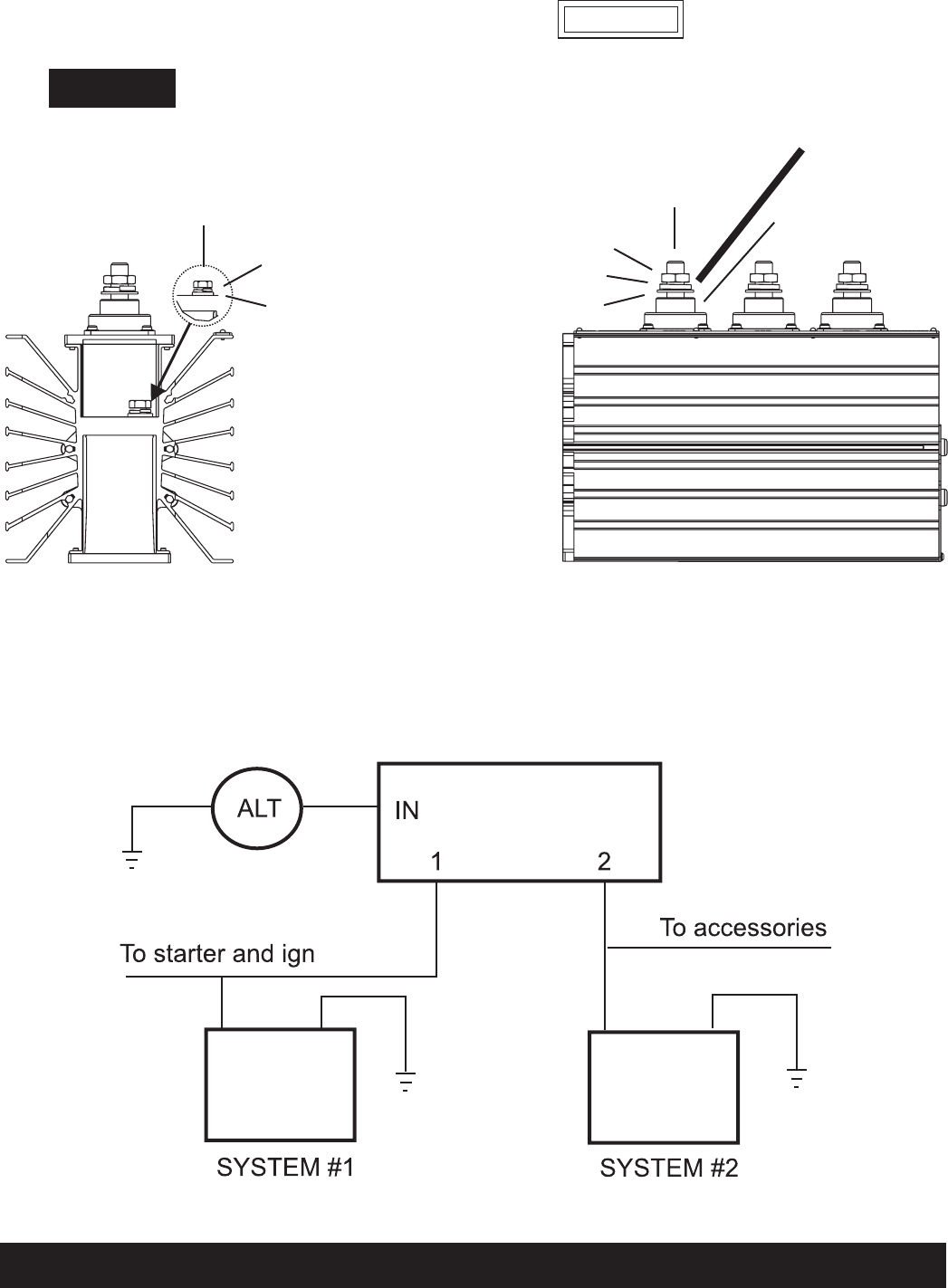

Figure 2 - Hardware Stacking Order and Torque (See Step 2 on Page 1)
M8x1.25x20mm Gnd Bolt –
torque to 15 Nm/11 lb. ft.
T
Lock washer
T
T
Flat washer
M12x1.75 Stud (3 places)
T
Lock washer (3 places)
T
T
Flat washer (3 places)
Nut (3 places)–
torque to 30 Nm/22 lb. ft.
T
T
27mm/1.06 in. dia.
brass boss
Customer cables
to be located
under at washer
Figure 3 - Simple Wiring Schematic for Reference Only—See Vehicle Manufacturer Speci cations
Typically, no more than two cables
per terminal are recommended for
the power carrying capacity of the
terminal.
CAUTION
Do not exceed recommended
torque. Component damage
will result.
DANGER
