7.2.2.8. Elevation Parameters
The Elevation menu allows for the configuration of the elevation axis. Options include
the elevation offset, as well as the axis limit functionality, slow speed setting, and current
limits for fast and slow speeds.

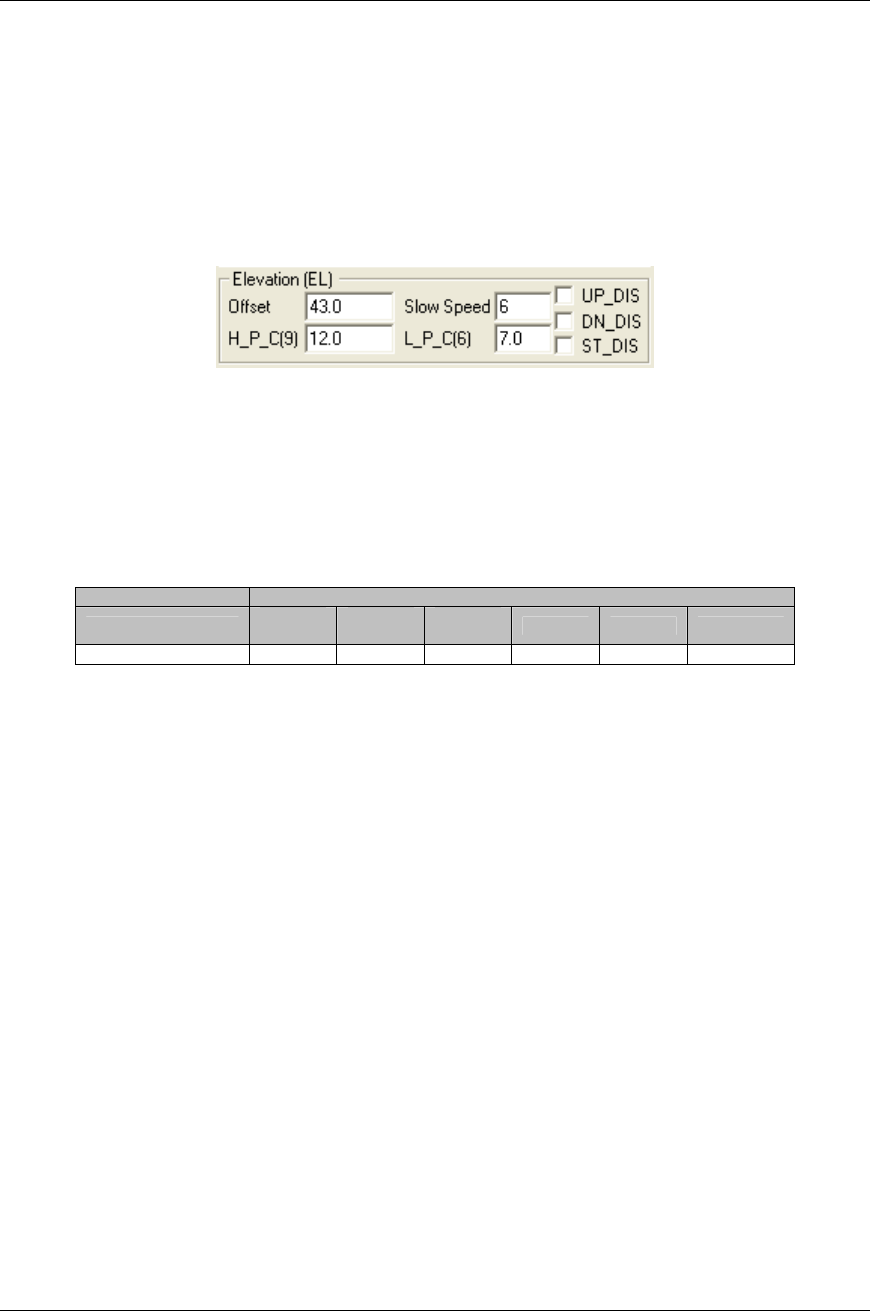

Fig. 73: Maintenance - Elevation Parameters
Offset
The Elevation Offset is specific to each type of platform. It is the number of
degrees at which the iNetVu™ Mobile Software will offset the reading from the
Inclinometer in order to produce an accurate (+/- 2°) Elevation Angle.
PLATFORM TYPES
A1200P A1800A/
B/C/D
A1200C
A0980B A0740B A0660A
EL OFFSET 31.00 45.00 42.00 31.00 31.00 35.00
Fig. 74: Default Elevation Offsets. All values are + 2  after Target Calibration.
Slow Speed
The iNetVu
TM
software basis the default elevation motor slow speed on the platform size
and type. See appendix 3, table 5 for details. The user may change this value, however
changing such value could result in difficulty for satellite acquisition.
Limit Switches (UP_DIS, DN_DIS, ST_DIS)
Allows the enabling and disabling of the UP, DOWN, and STOW limits.
A check mark in the box implies the limit has been DISABLED. By default the boxes are
left unchecked. Please be advised that disabling any of these limits should be done
under the direct supervision of a c-com technical support representative.
Current Settings
H_P_C (9) and L_P_C (6) represent high platform current @ speed 9, and low platform
current @ speed 6 respectively. A software controlled current protection for the Mobile
Platform’s elevation motors. For Motor Speeds that are not listed (Speed 1, 2, 4, 5, 7, 8),
the Current Limit for those speeds is calculated using a percentage of the Current Limit
