7.2.2.2. Reference Satellite Parameters
The reference satellite option is useful when the user cannot find a DVB transponder on
the desired target satellite. The user may select a reference satellite with a known DVB
Transponder. The iNetVu
TM
System will lock onto the reference satellite, and then pivot
from that point to the desired target satellite, and peak on the modem signal.

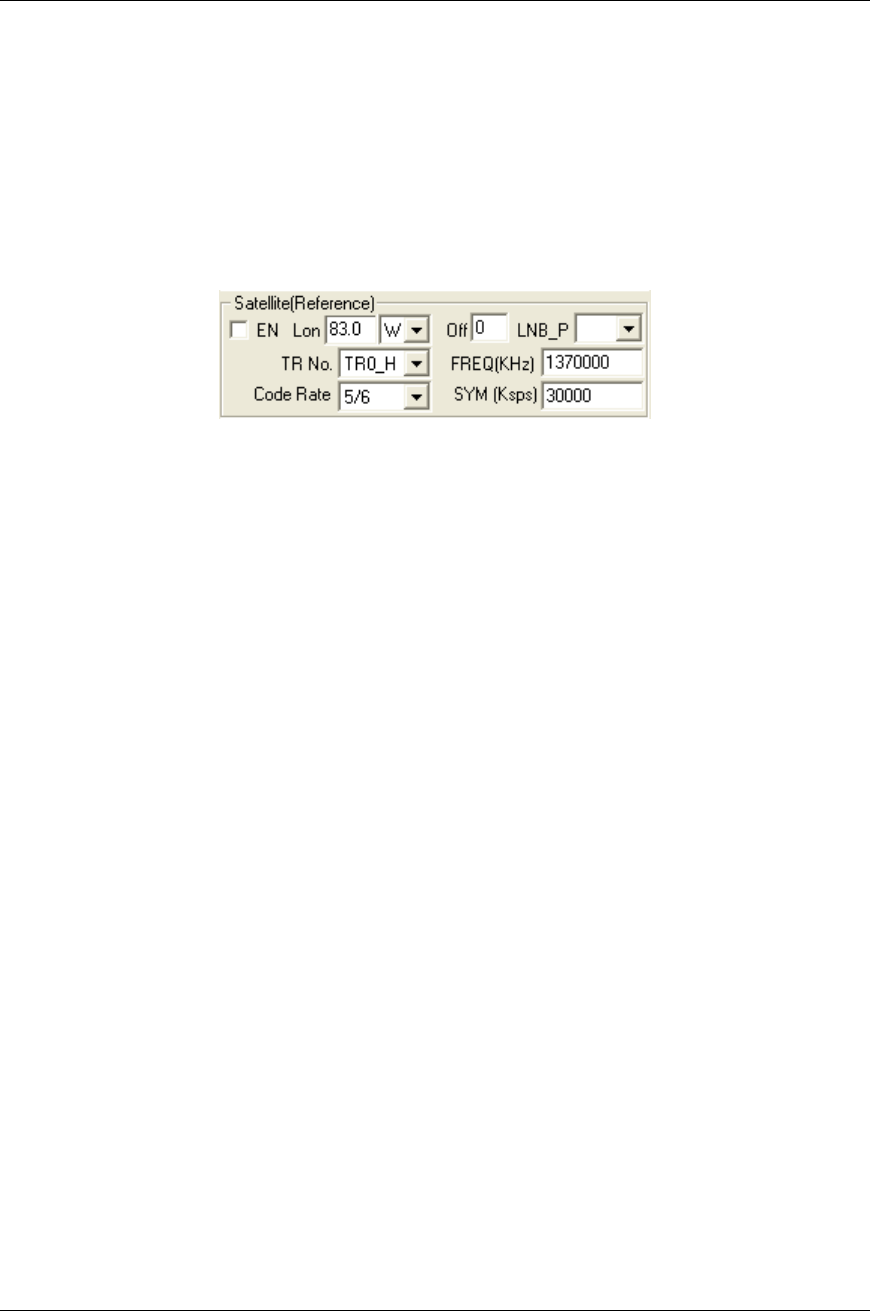

Fig. 64: Maintenance – Reference Satellite Parameters
EN
If this checkbox is selected, the Reference Satellite Option becomes active. If this box is
not selected, all the information in this Reference Satellite Section becomes irrelevant.
Lon
This field represents the Orbital slot / Longitude of the Reference Satellite. The Find
Satellite command will use this satellite as a pivot point to lock onto the target satellite.
Off (Sat Pol Offset)
Denotes Transmit Polarity and may be altered to accommodate any offset ranged -90 to
+90
Generally in North America and most areas around the world
1200/1800 Platforms – Horizontal Receive (Sat Pol Offset = 0), Vertical Receive (Sat Pol Offset = 90)
740/980 Platforms – Sat Pol Offset = 0 considering OMT is adjusted Manually. (See Platform Setup
and Maintenance Manual for instructions on how to adjust the OMT based on
polarity)
LNB Power (V)
The user may power the LNB with 13-21 Volts when searching for target satellite, or use
a splitter and power the LNB straight from the modem.
See section 7.2.2.1 for more detail on LNB Power.
