7.2.2.1. Satellite Parameters

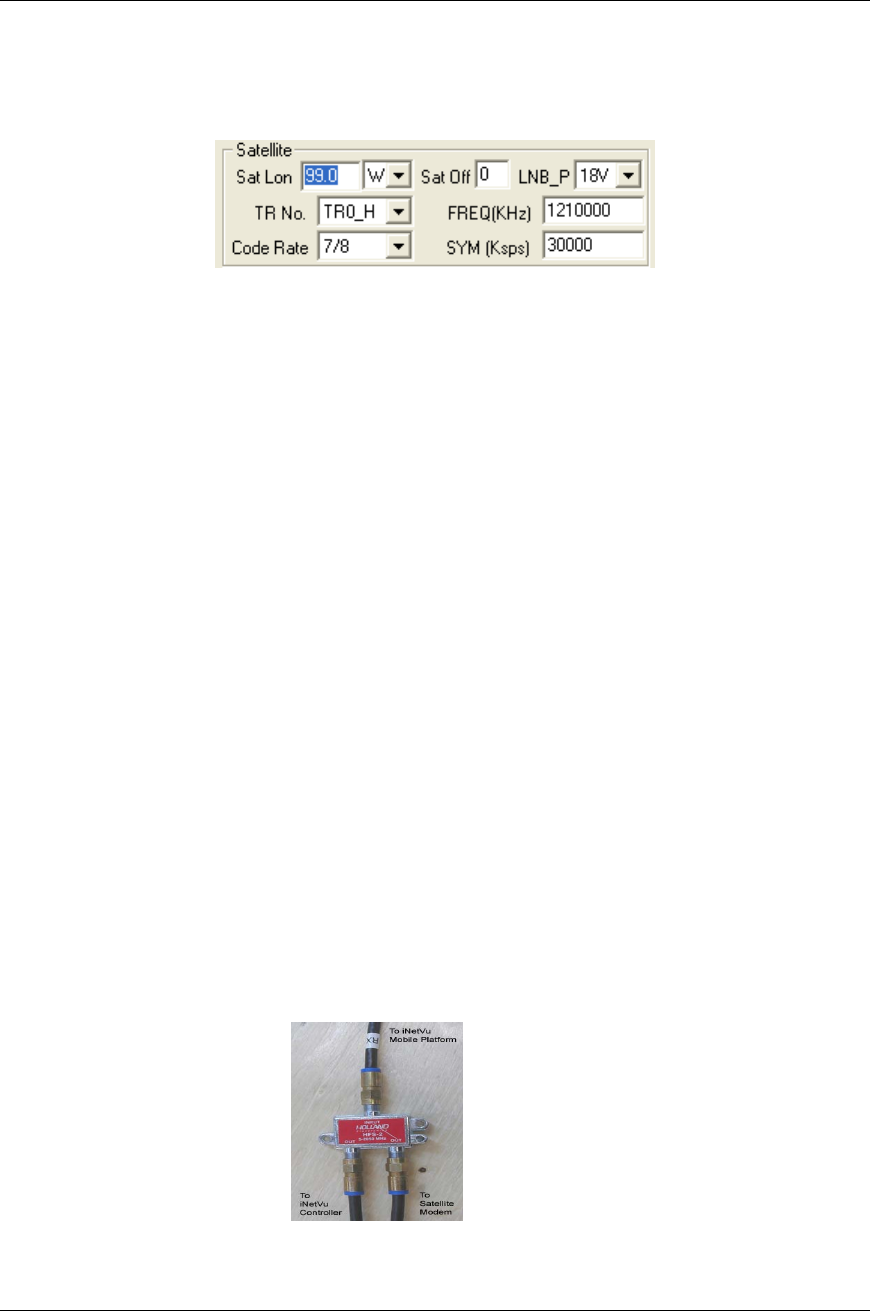

Fig. 62: Maintenance – Satellite Parameters
Sat Lon
Orbital slot / Longitude of the desired Satellite. The Find Satellite command will use this
value when attempting to find and lock onto a satellite signal.
Sat Pol Offset
Denotes Transmit Polarity and may be altered to accommodate any offset ranged -90 to
+90
Generally in North America and most areas around the world
1200/1800 Platforms – Horizontal Receive (Sat Pol Offset = 0), Vertical Receive (Sat Pol Offset = 90)
740/980 Platforms – Sat Pol Offset = 0 considering OMT is adjusted Manually. (See Platform Setup
and Maintenance Manual for instructions on how to adjust the OMT based on
polarity)
LNB Power (V)
In cases where the LNB requires more power then the modem can provide, or if the user
would like to power the LNB from the controller, or if the user would like to find satellite
without the use of a modem, this option allows for power from the controller to be
supplied to the LNB through the RX IN cable from the controller to the platform itself.
DIS – will disable this option, and provide power to the LNB straight from the modem. In
this case, a splitter must be used for the RF connection as depicted in the figure below.
Fig. 63: RF Cable Setup for DIS selection
