4- Beep
This option allows for enabling and disabling the Beeping sound when navigating the LCD screen
through the front panel keypad.
E – Beep Enabled, a beeping sound will occur upon navigation the LCD Interface.
D – Beep Disabled, the sound will be completely removed.
5- Platform Type
The user is capable of configuring the platform in use, as well as entering the four-digit serial
number of the platform located next to the connector plate on the platform itself
.
A66A – iNetVu
TM
Ka66 Mobile Platform (Ka – Band)
A74B - iNetVu
TM
A740/A750 Mobile Platform (Ku – Band)
A98A - iNetVu
TM
A980 Mobile Platform (Ku – Band)
A12B - iNetVu
TM
A1200 Mobile Platform (Ku – Band)
A18A - iNetVu
TM
A1800 Mobile Platform (Ku – Band)
A18B - iNetVu
TM
A1800 Mobile Platform (C – Band)
A12P - iNetVu
TM
1.2m Flyaway Platform (Ku – Band)
6- Platform Serial Number
The user may enter the last four-digits of the platform serial number located next to the connector
plate on the iNetVu
TM
Mobile Platform.

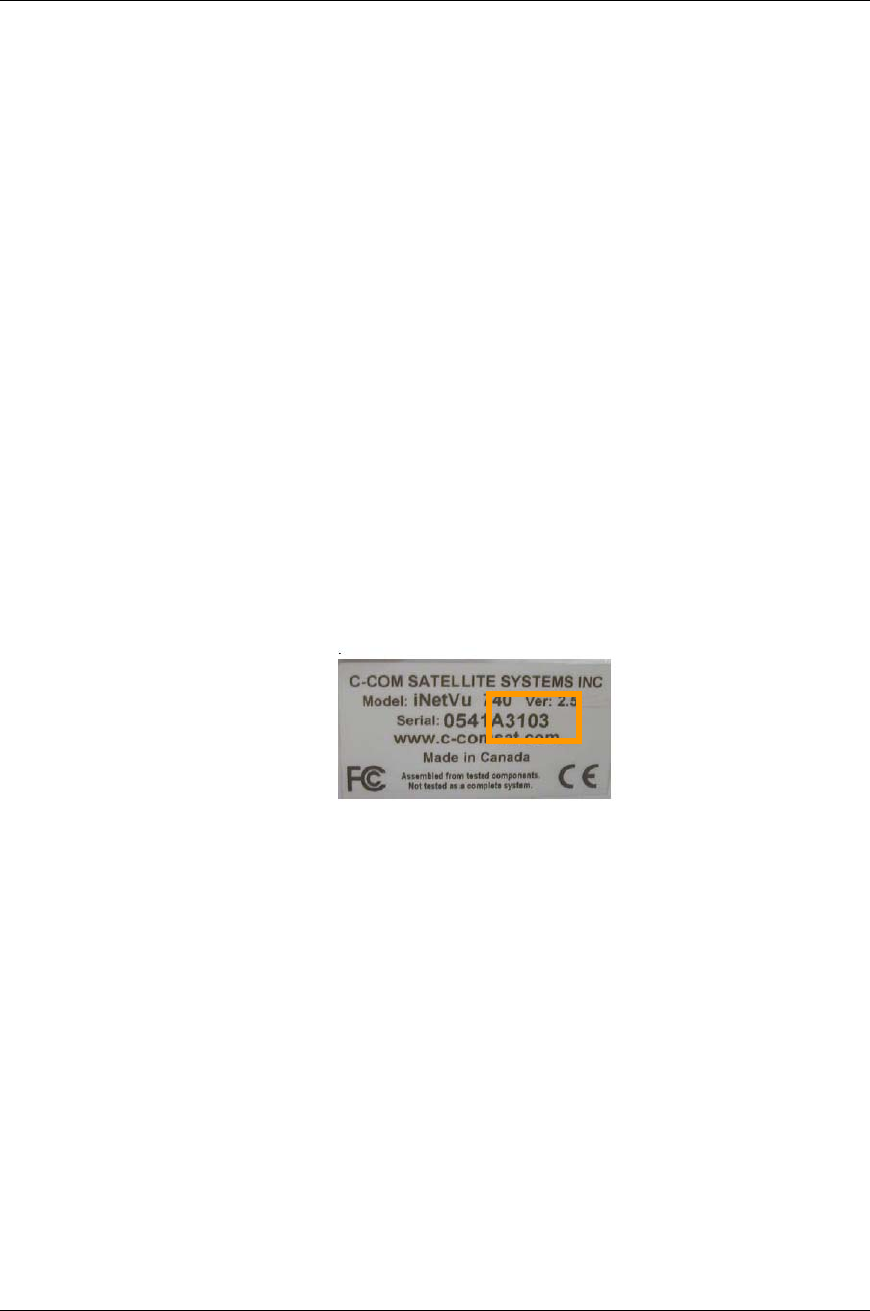

Fig. 36: iNetVu
TM
Platform Identification Tag
7 – Motion Protection
iNetVu
TM
Platform will automatically stow if the antenna is moving at a speed faster then 5 km/h.
Also, the iNetVu™ Mobile Platform will automatically stow the antenna should it experience
extreme motion, such as severe shaking caused by poor weather conditions.
E- Enabled
D-Disabled
