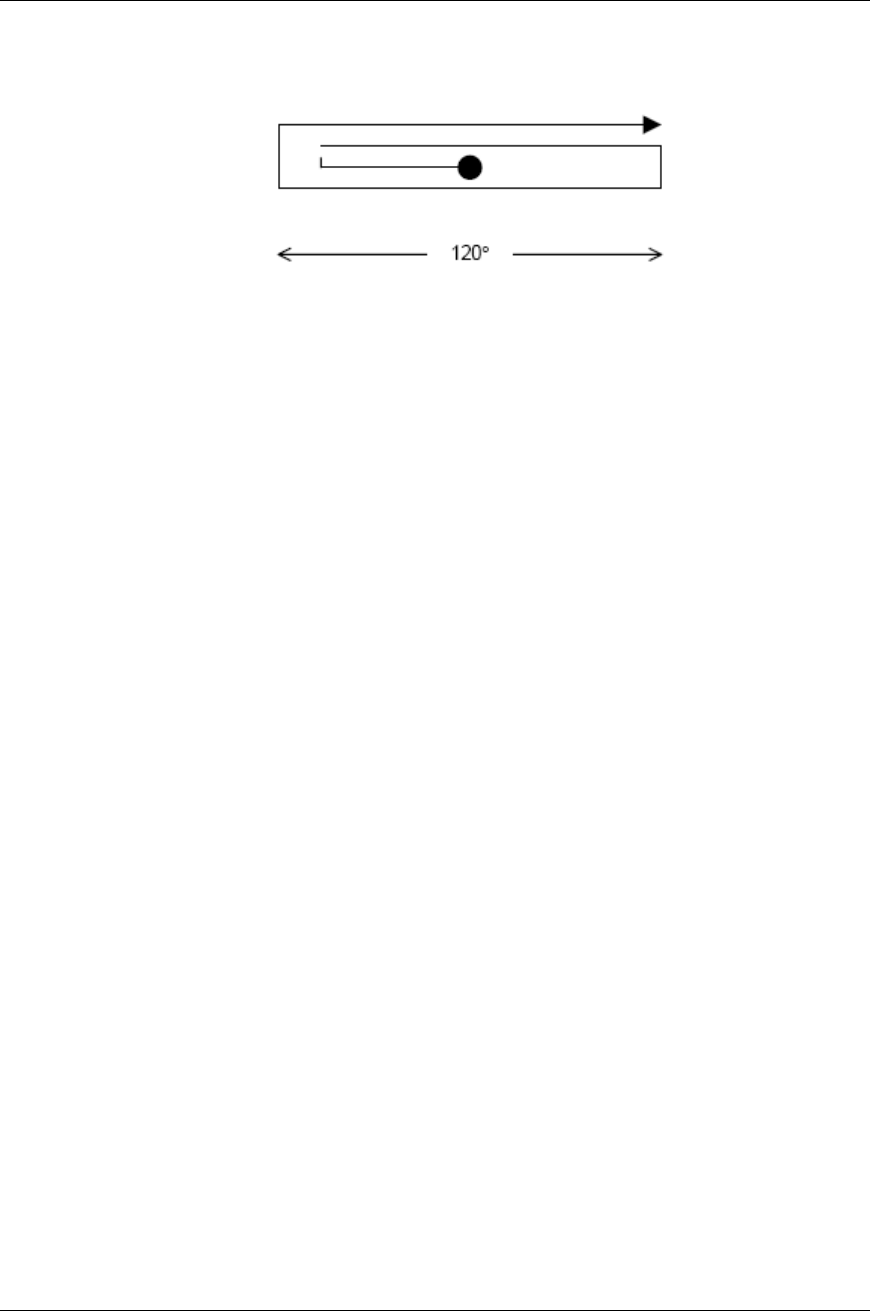

Fig. 33: Azimuth Coverage of search window

The default Azimuth (Horizontal) range is 60° on each side of the Target Point.

Increasing the size of the Search Window will increase the ability to find the desired

Satellite, although increasing the Search Window will lengthen the search time.

5 –Speed Setting

S The user may configure the slow speed of the azimuth movement. The slow speed is a

basis for the satellite searching procedure.

6 – Current Settings

A software controlled current protection for the Mobile Platform’s azimuth motors. When any of the

Mobile Platform’s motors are moving at the associated speed, the current drawn to move the motor

is monitored and should it exceed the Current Limit, an error message will appear. For Motor

Speeds that are not listed (Speed 1, 2, 4, 5, 7, 8), the Current Limit for those speeds is calculated

using a percentage of the Current Limit above it. See appendix 3 for the default current limits for all

iNetVu

Mobile Platforms.

• Current Limit 8 – 90% of Current Limit 9

• Current Limit 7 – 80% of Current Limit 9

• Current Limit 5 – 90% of Current Limit 6

• Current Limit 4 – 80% of Current Limit 6

• Current Limit 2 – 90% of Current Limit 3

• Current Limit 1 – 80% of Current Limit 3

I Configurable Current Limit For High Speed (9) movement is to the left of the dash, and

Configurable Current Limit For Slow Speed (6) movement is to the right of the dash.

(i.e. I: 08-05 Represents Current Limit of 8 A @ speed 9, and Current Limit of 5 A @ speed 6)
