9 - LNB Power (Target Satellite)
In cases where the LNB requires more power then the modem can provide, or if the user would like
to power LNB from the controller, or if the user would like to find satellite without the use of a
modem, this option allows for power from the controller to be supplied to the LNB through the RX
IN cable from the controller to the platform itself.
DD – will disable this option, and provide power to the LNB straight from the modem. In this case, a
splitter must be used for the RF connection as depicted in the figure below.

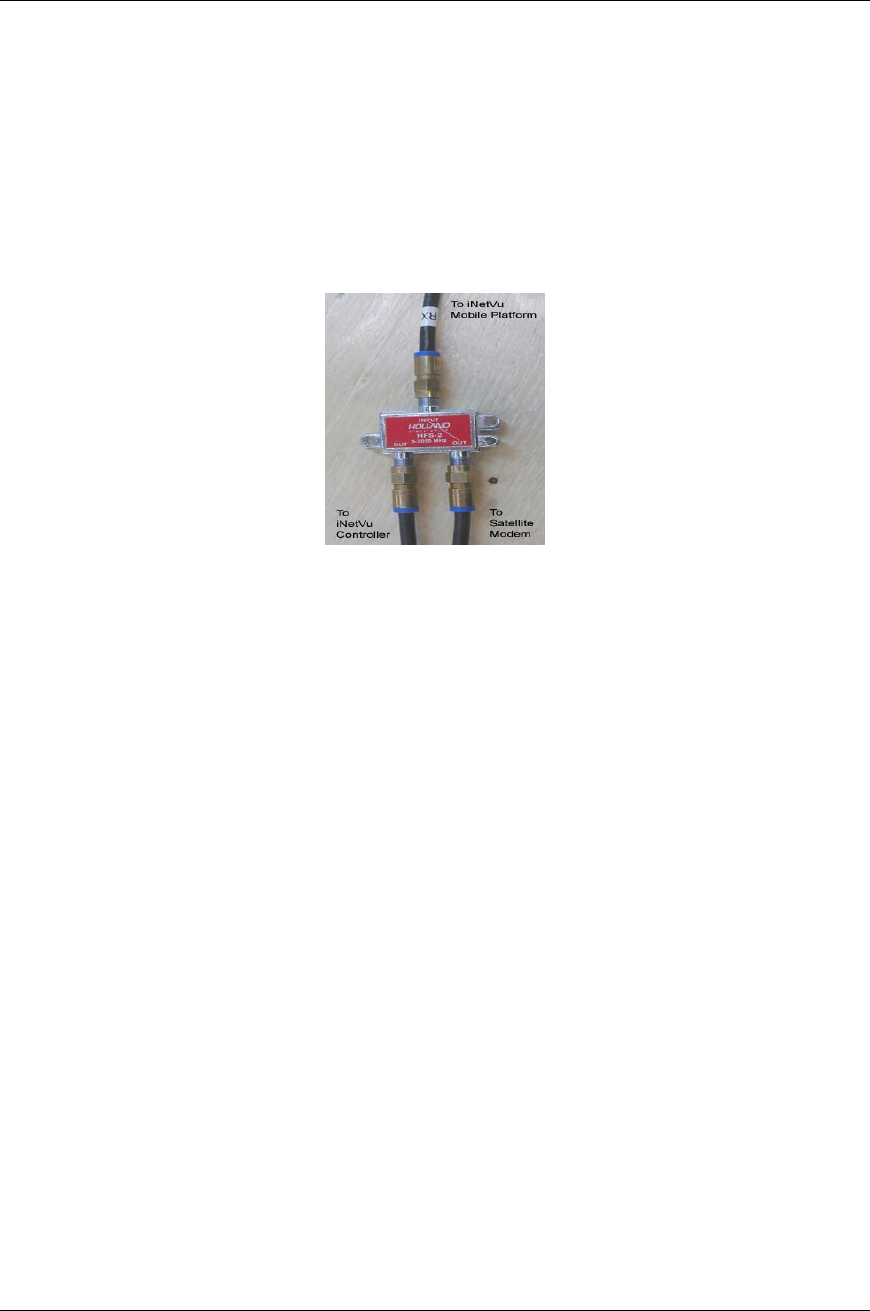

Fig. 29: RF Cable Setup for DIS selection
7000 Controller Power Output Range Option Capabilities: 13, 14, 18, 19, 20, 21 V @ 500mA (max)
If the user chooses to power the LNB from the controller, he/she should verify the power/voltage
range requirements of the LNB in use, and configure the iNetVu
TM
7000 Controller according to
those power/voltage requirements.
10 - LNB Power (Reference Satellite)
Power Supplied to the LNB during search for the reference satellite (if this option is selected)
